4 Ton Electric Forklift
Welcome to inquiry us to get more discounts and spare parts!
-
Feature
Rated capaity: 4000kg
-
Feature
Mast: 2 Stage/3 Stage
-
Feature
Lifting Height: 3000mm
-
Feature
Control System: USA Curtis
description

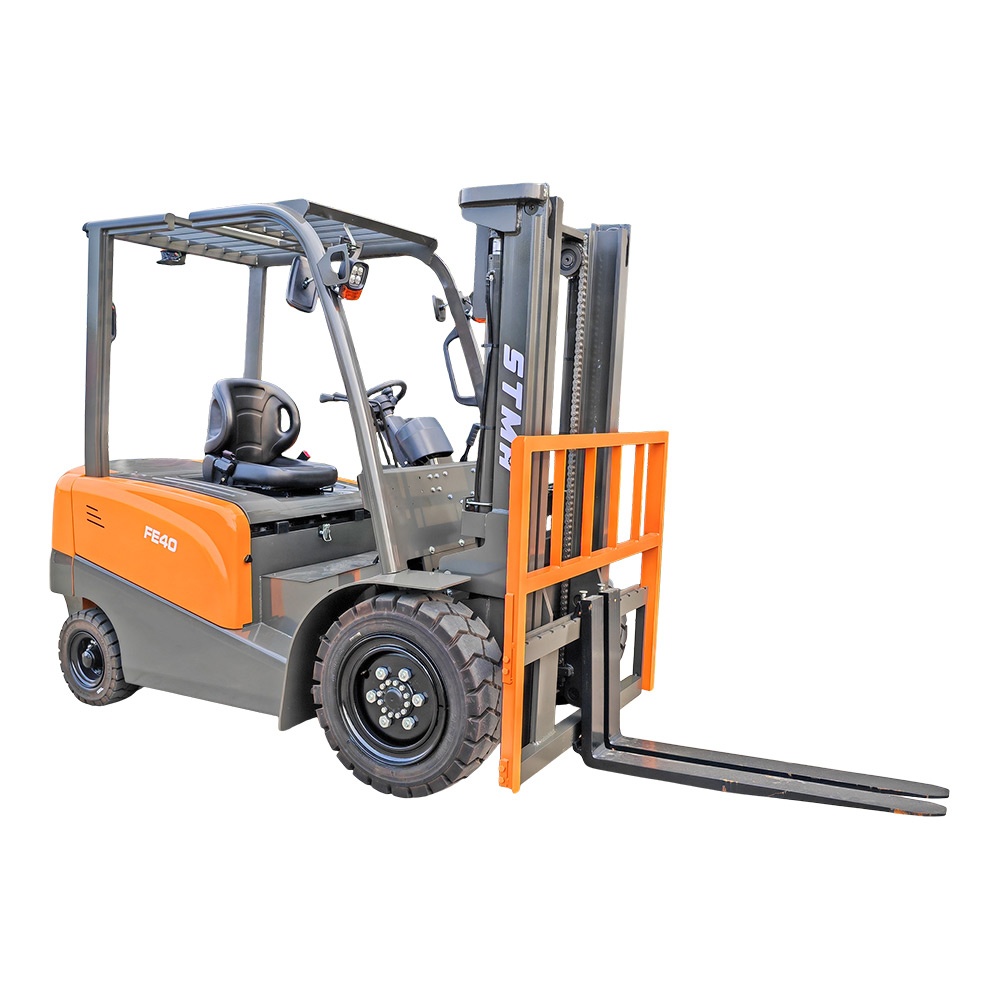

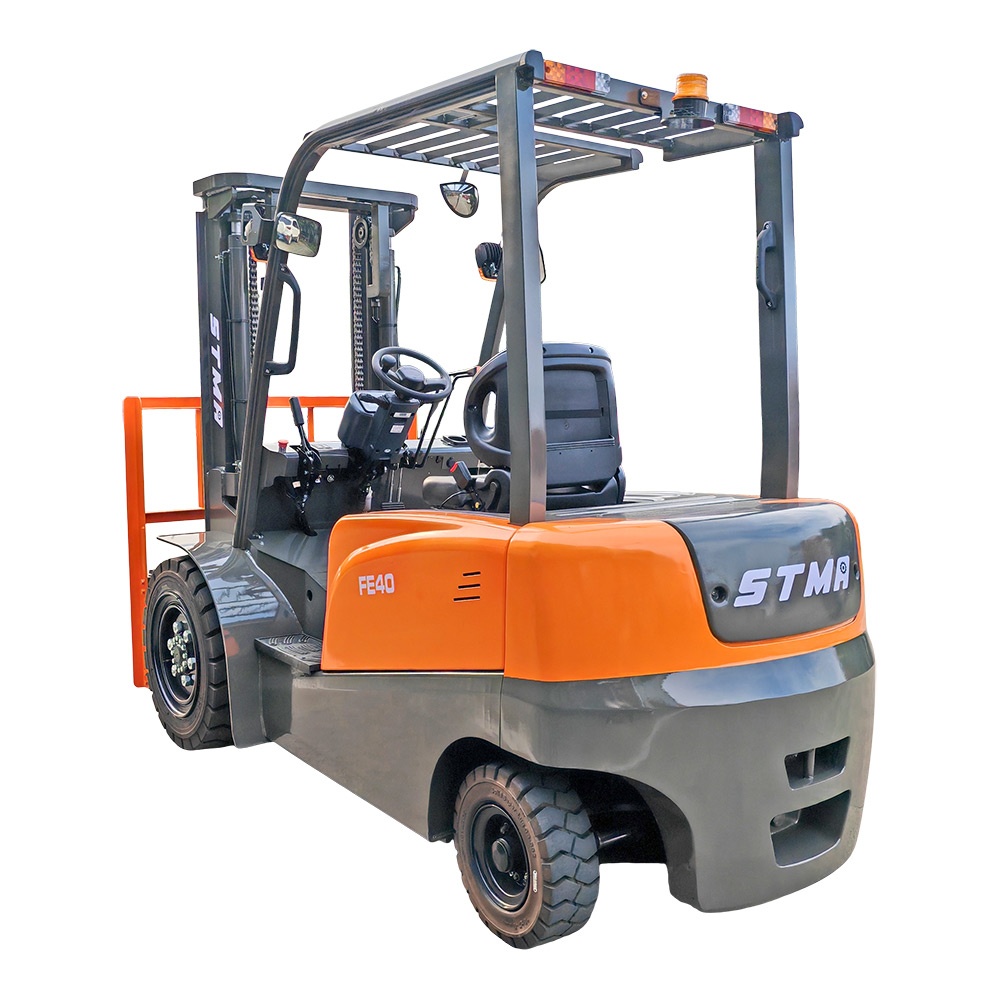

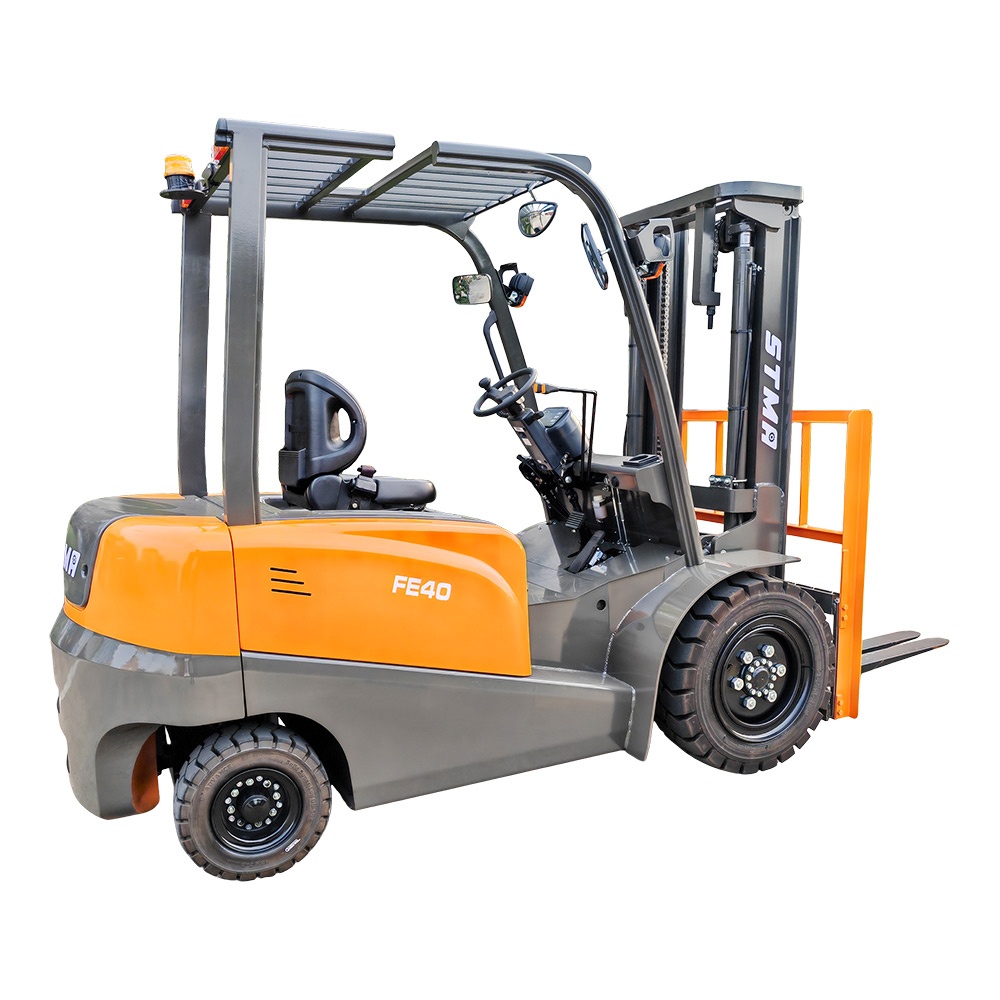

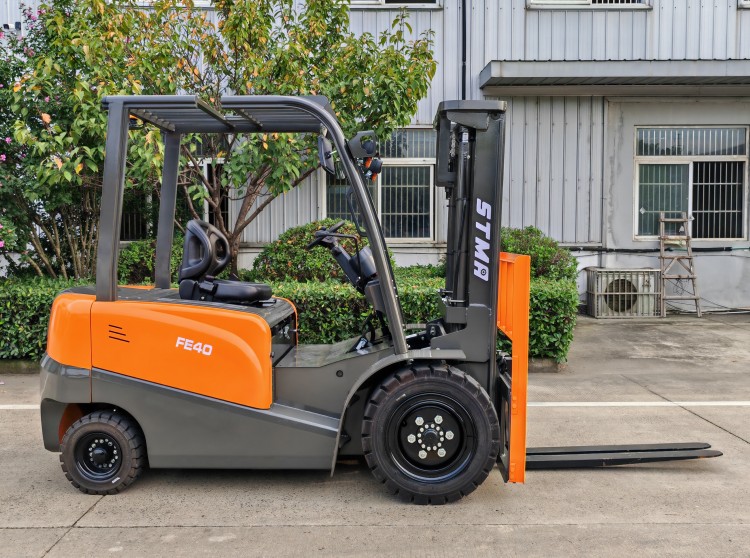

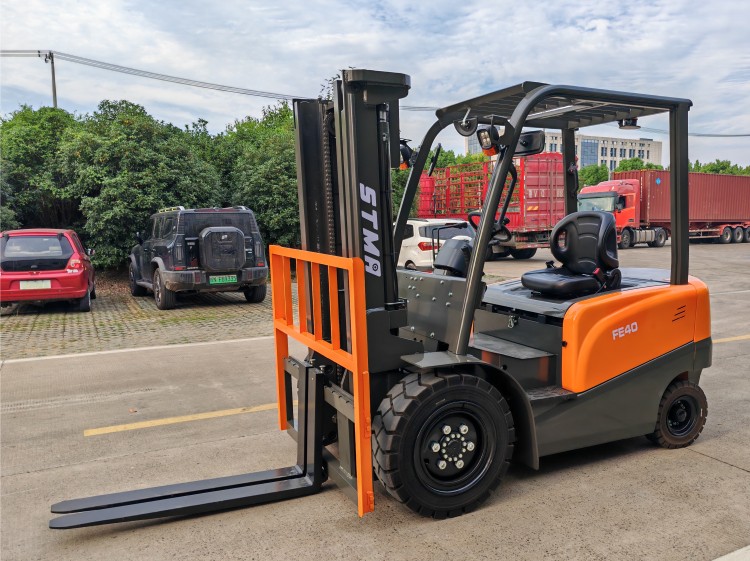

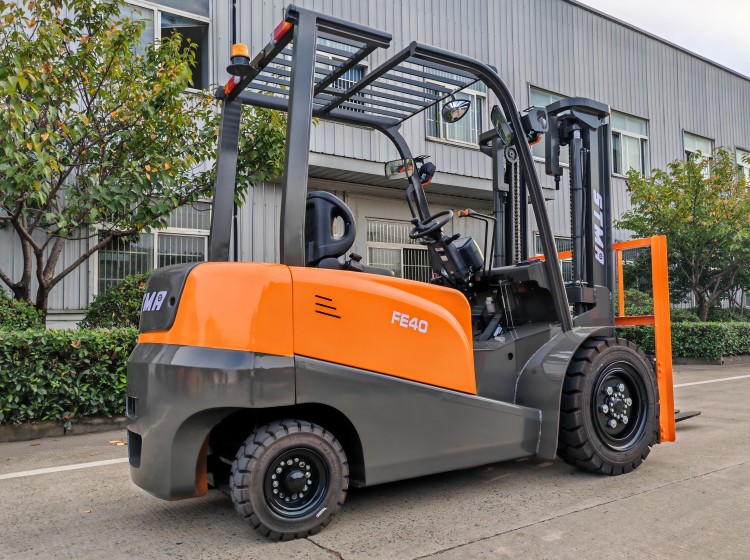

STMA 4ton electric forklift with America Curtis Controller
Product details:
Specifications:
制造商 Manufacturer | STMA | ||
型号 Model | FE40 | ||
动力形式 Power type | Lead acid battery | ||
额定载重 Rated capacity | kg | 4000 | |
载荷中心 load center | mm | 500 | |
起升高度 Max.lift height of fork( standard) | mm | 3000 | |
货叉尺寸 fork size | mm | 1070X150X50 | |
门架倾角（前/后） mast tilt angle（front/rear) | Deg | 6°/12° | |
全长（不带货叉）overall length(without fork) | mm | 2690 | |
全宽（挡泥板/车体）overall width(Mud Guard/body) | mm | 1420/1200 | |
门架不起升高度 Height of mast（standard） | mm | 2150 | |
门架起升高度（带挡货架） Max.lift height of mast with load-backrest | mm | 4272 | |
货叉架宽度 fork width | mm | 1300 | |
护顶架离地 Overhead guard height | mm | 2140 | |
前悬距 front overhang | mm | 500 | |
最小离地间隙 Min ground clearance | mm | 130 | |
最小转弯半径 Min turning radius | mm | 2500 | |
最小直角堆垛通道宽度 Minimum right-angle stacking channel width | pallet托盘1000mmX1000mm | mm | 4200 |
速度 speeds | 最大行驶速度（空载）Max.drive speeds(without load) | km/h | 14 |
最大起升速度（满载）Max lifting speeds(with full load | mm/s | 250 | |
最大爬坡度（满载）Max grade ability(full load) | % | 15 | |
轮胎 Tires | 前胎（Solid）Front(solid tire) | 250-15 | |
后胎（Solid） | 18X7-8 | ||
轮距 tread | 前轮/后轮( Front/ rear) | mm | 1166/990 |
轴距 wheel base | mm | 1800 | |
自重（含蓄电池）weight （include battery) | kg | 5440 | |
蓄电池（电压/容量）Battery (Voltage/capacity) | V/Ah | 80/500AH | |
蓄电池重量Battery Weight | kg | 1243 | |
控制方式 control mode | 全交流 full-AC motor | ||
电动机 electric motor | 行走（牵引电机）Walking (traction motor) | kw | 16.6 |
起升（泵电机）Lifting (pump motor) | kw | 13.5 | |
系统压力 system pressure | MPa | 20 |

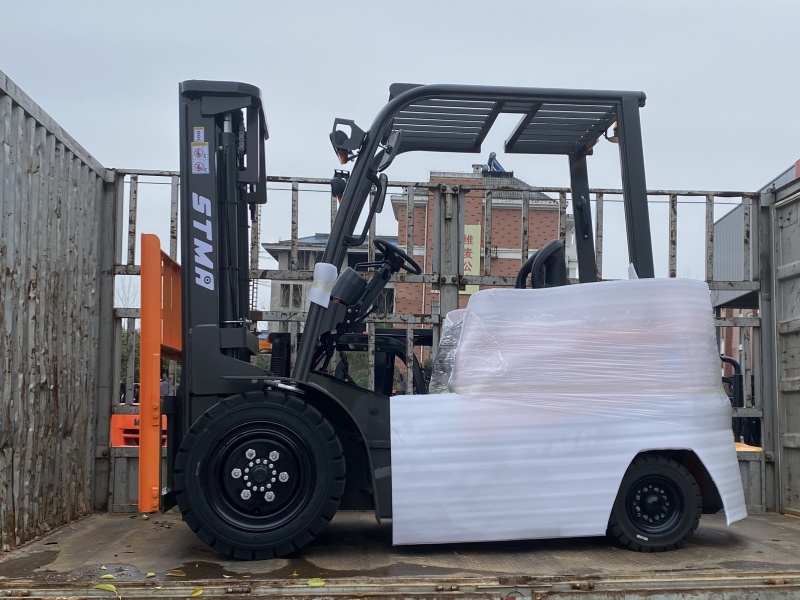

Shipping & Packing:
STMA Industrial (Xiamen) Co.,Ltd
ADDRESS：Unit 216b-2,2/F,Building No.2 Free Trade Timessquare,No.35 Xiangxing Four Road Xiamen Area,China(Fujian) Pilot Free Trade Zone
Phone：0086 15060769319
Tel：0086-0592-5667083
Email：overseas@xmstma.com
Whatsapp/Wechat：0086 15060769319
-
RETAIL AND WHOLESALE
Seamless goods flow from warehouse to shelf
Retail logistics need to be efficient and quiet, and our electric forklifts offer flexible, low-noise solutions to optimize warehouse management.
-
LOGISTICS & WAREHOUSING
Efficient Handling - Intelligent Warehousing
In the era of globalized supply chain and the explosion of e-commerce, the logistics and warehousing industry is facing multiple challenges in terms of efficiency, cost and safety. We provide customized forklift and material handling solutions to help you optimize warehouse layout, increase throughput, reduce operating costs, and create an agile modern logistics system.
-
MANUFACTURING
Synchronize with the rhythm of your production line
Manufacturing logistics requires high loads and precise control, our forklift trucks provide customized attachments to meet the needs of different production scenarios.
-
PORTS & TERMINALS
Yard operations: empty container stacking, heavy container short haul, container repositioning and sorting
Ship connection: After the bridge crane unloads the ship, the forklift connects to the dock yard trailer for transfer
Box operations: container unloading and loading, palletizing and handling of goods
Auxiliary tasks: container maintenance, yard cleaning, spare parts transportation
