5-7 Ton Electric Forklift
Welcome to inquiry us to get more discounts and spare parts!
-
Feature
Rated capaity: 5000kg
-
Feature
Mast: 2 Stage/3 Stage
-
Feature
Lifting Height: 3000mm
-
Feature
Controller：Chinese Weide
description

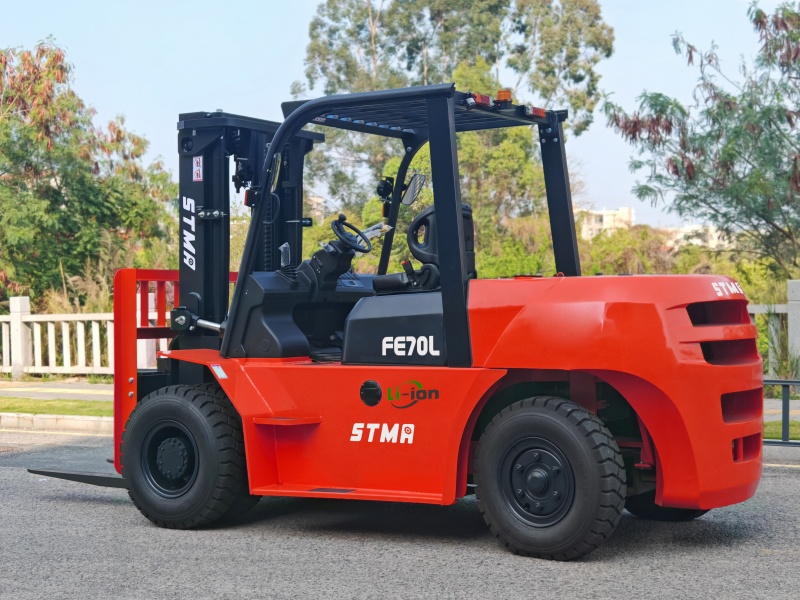

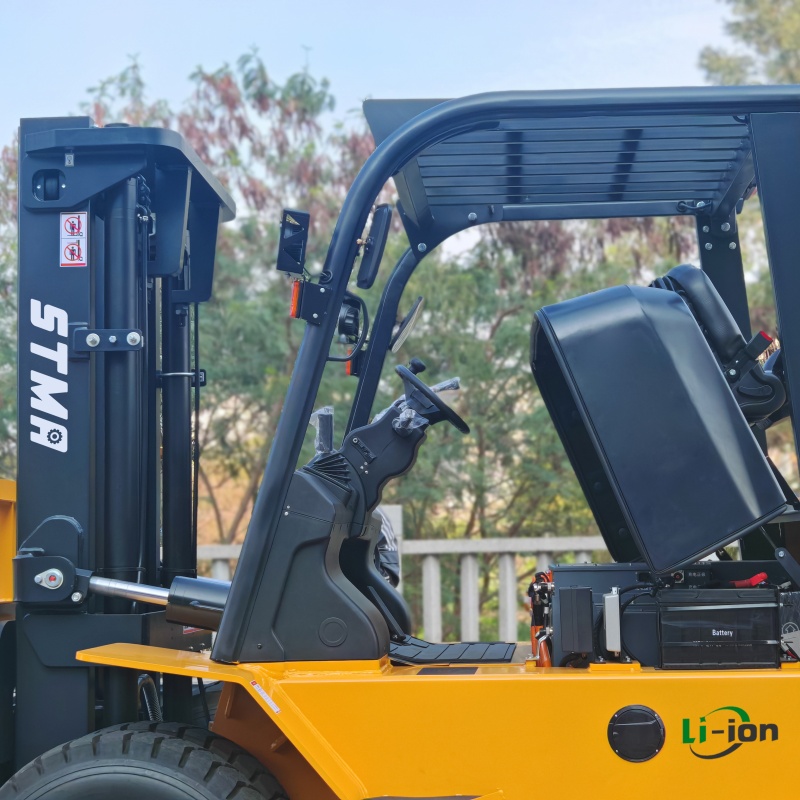

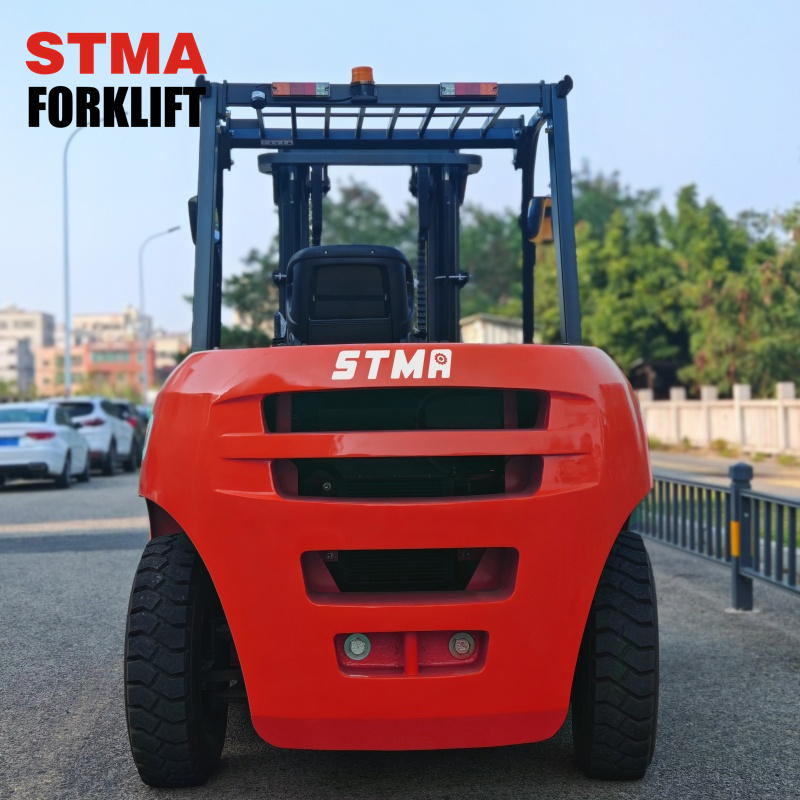

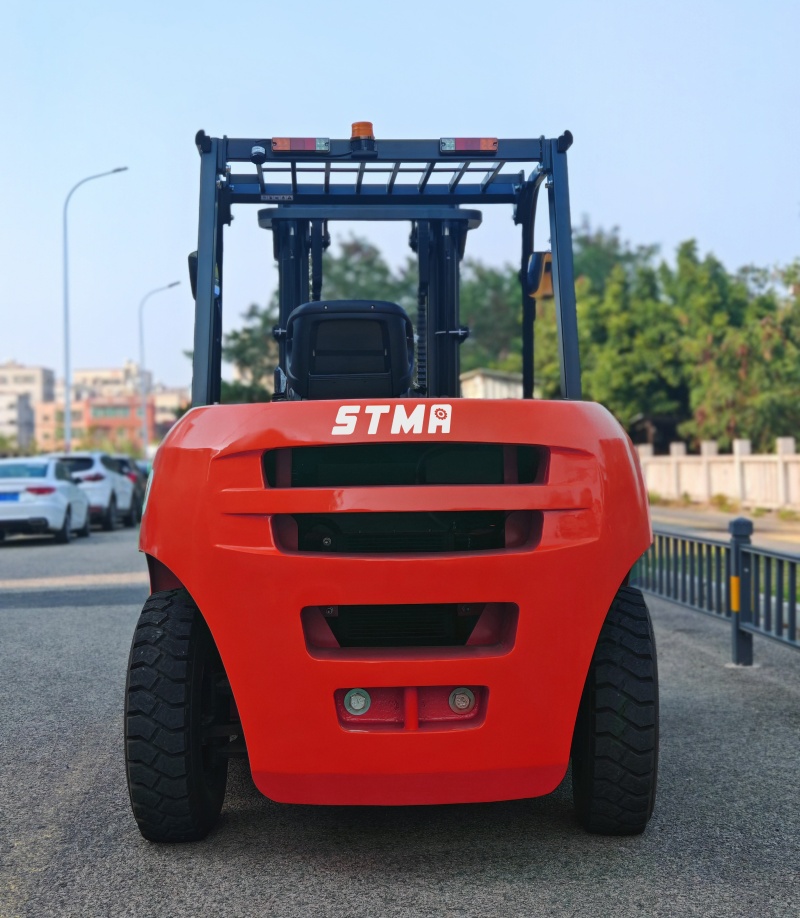

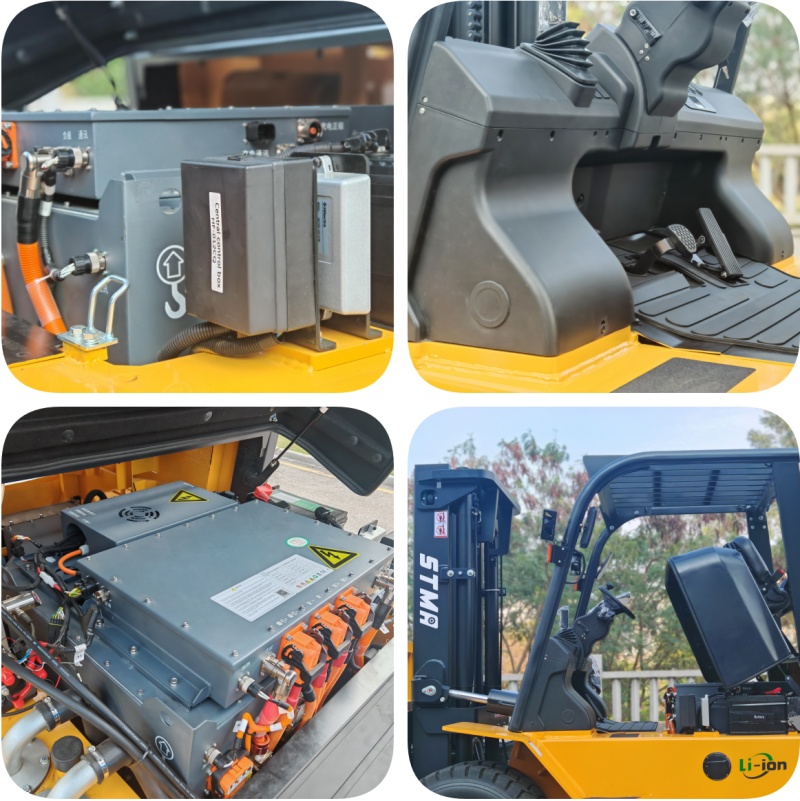

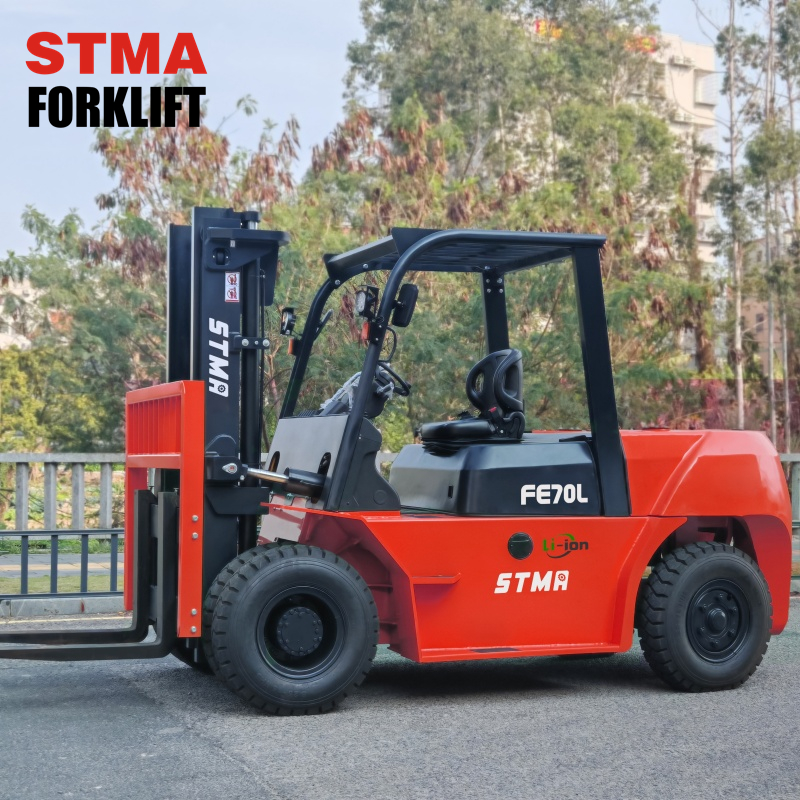

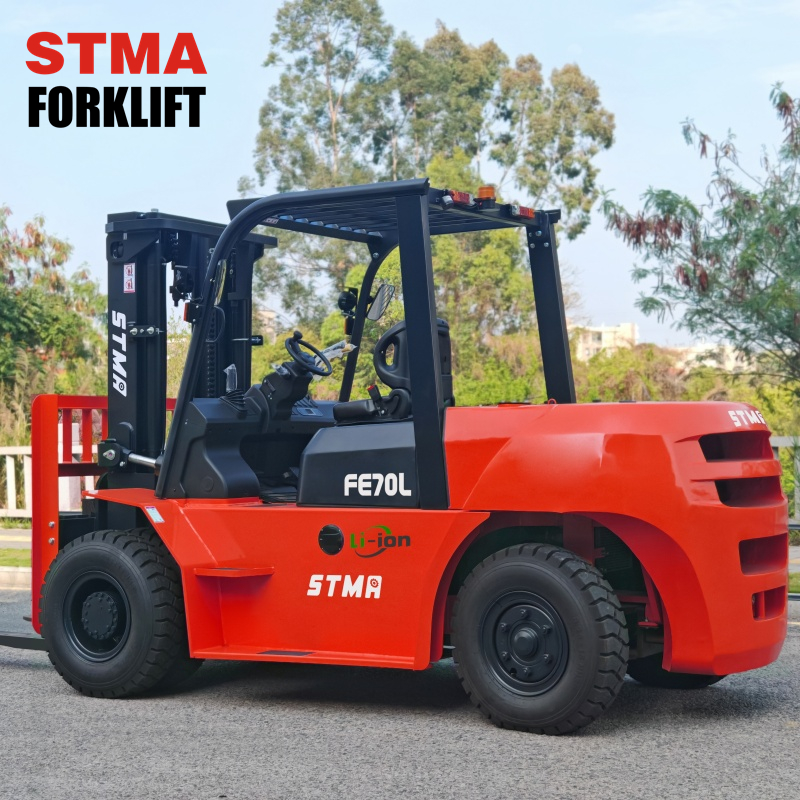

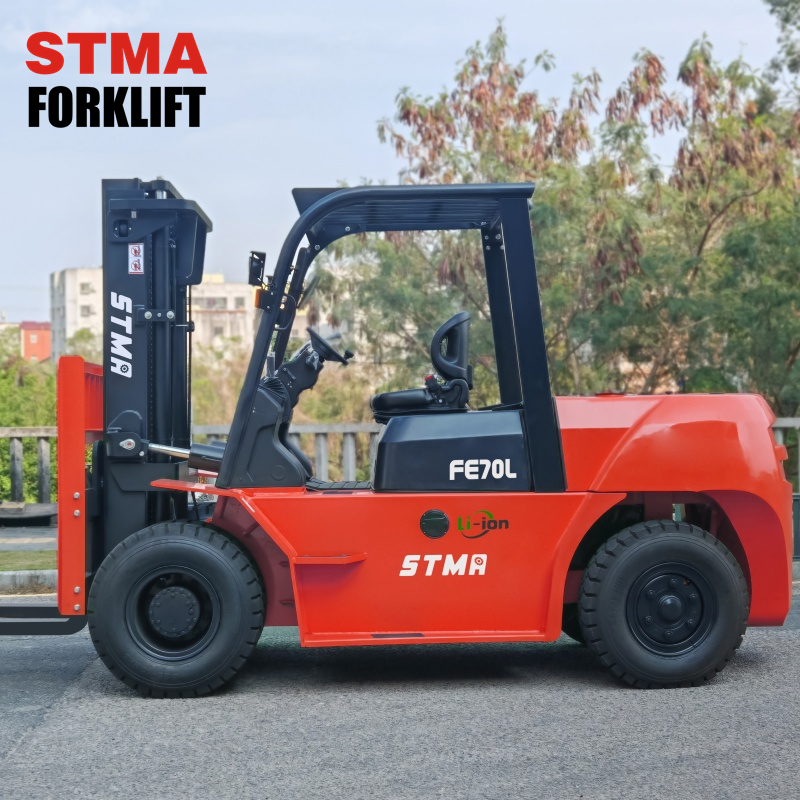

STMA 7ton lithium battery forklift truck with 600mm load center
Specifications:
| Brand | － | STMA | |||
| Model | － | FE70L | FE80L | FE100L | FE120L |
| Power mode | － | Lithium Iron Phosphate battery | |||
| Driving mode | Seat | Seat | Seat | Seat | |
| Load capacity | Q(Kg) | 7000 | 8000 | 10000 | 12000 |
| Load center | C(mm） | 600 | 600 | 600 | 600 |
| Max.lifting height | h4（mm） | 3000 | 3000 | 3000 | 3000 |
| Self-weight | kg | 9300 | 9400 | 12500 | 13500 |
| Battery weight | kg | 735 | 735 | 735 | 735 |
| Front overhang | x（mm） | 595 | 595 | 718 | 738 |
| Wheelbase | y（mm） | 2350 | 2400 | 2800 | 3000 |
| Mast tilting angle (fwd/bwd) | α/β（°） | 6/12 | 6/12 | 6/12 | 6/12 |
| Mast height(fork lowered) | mm | 2500 | 2500 | 2850 | 2850 |
| Free lifting height | mm | 155 | 155 | 180 | 180 |
| Max.lifting height | mm | 4400 | 4400 | 4550 | 4550 |
| Overhead guard height | mm | 2480 | 2480 | 2560 | 2560 |
| Driver's seat height | mm | 1350 | 1350 | 1400 | 1400 |
| Overall length(without fork) | h1（mm） | 3750 | 3800 | 4260 | 4460 |
| Overall width | b1（mm） | 2000 | 2000 | 2160 | 2200 |
| Fork size:thickness*width*length | mm | 1220×150×65 | 1220×150×65 | 1220×150×80 | 1220×150×80 |
| Min. ground clearance (mast) | m1（mm） | 200 | 200 | 245 | 245 |
| Min. ground clearance (middle of chassis) | mm | 210 | 210 | 255 | 255 |
| Min. turning radius | Wa（mm） | 3470 | 3480 | 3900 | 4200 |
| Tire type | - | pneumatic tire | pneumatic tire | pneumatic tire | pneumatic tire |
| Tire number（X=driving tire） | - | 4×/2 | 4×/2 | 4×/2 | 4×/2 |
| Front tire | - | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 10.00-20-18PR |
| Rear tire | - | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 10.00-20-18PR |
| Travelling speed（loaded/unloaded） | Km/h | 23/24 | 23/24 | 23/24 | 22/23 |
| Lifting speed（loaded/unloaded） | mm/s | 460/480 | 440/480 | 340/360 | 320/360 |
| Max.drawbar pull(load/unloaded) | kN | 23/20 | 23/20 | 20/20 | 20/20 |
| Max.gradeability（loaded/unloaded） | % | 18/20 | 18/20 | 18/20 | 18/20 |
| Power unit model | - | -- | -- | -- | -- |
| Power unit cooling form | - | liquid cooling | liquid cooling | liquid cooling | liquid cooling |
| Travelling motor power | KW | 45.0AC | 45.0AC | 45.0AC | 45.0AC |
| Working motor power | KW | 30.0ACx2 | 30.0ACx2 | 30.0ACx2 | 30.0ACx2 |
| Battery (voltage/capacity) | V/Ah | 345.5/230 | 345.5/230 | 345.5/280 | 345.5/280 |
| Standard charger specifications(output) | V/A | 345.5V80A | 345.5V80A | 345.5V160A | 345.5V160A |

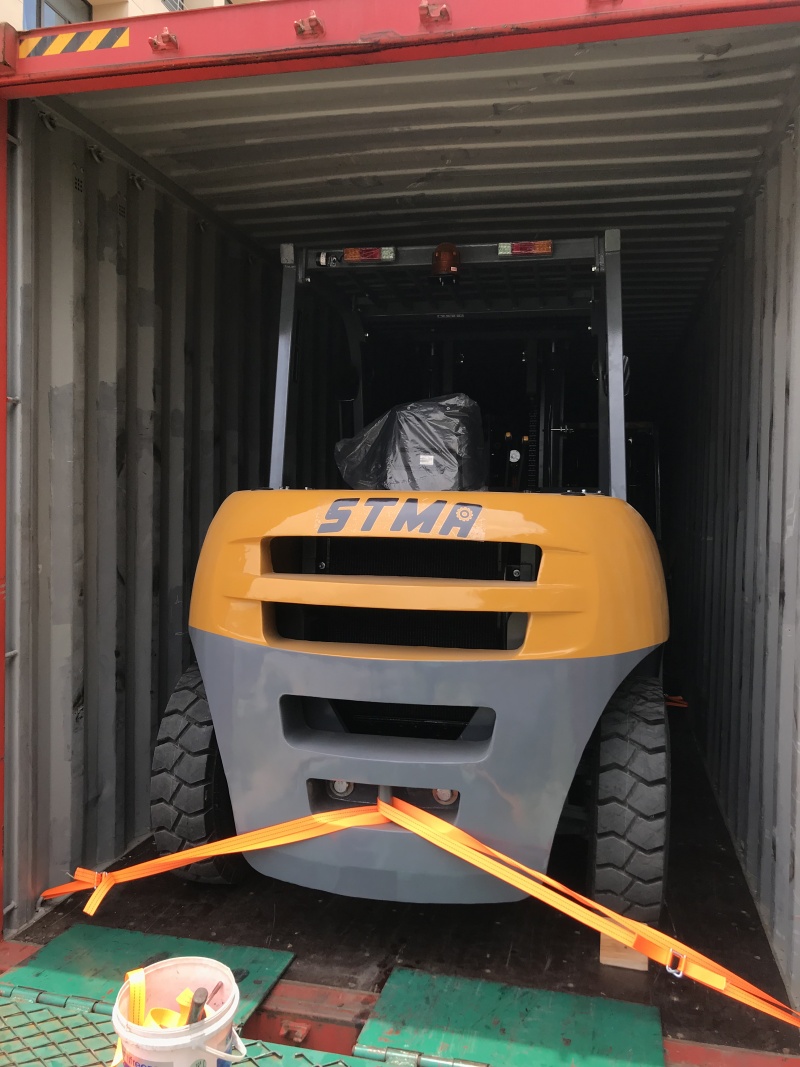

Shipping & Packing:
