1.2

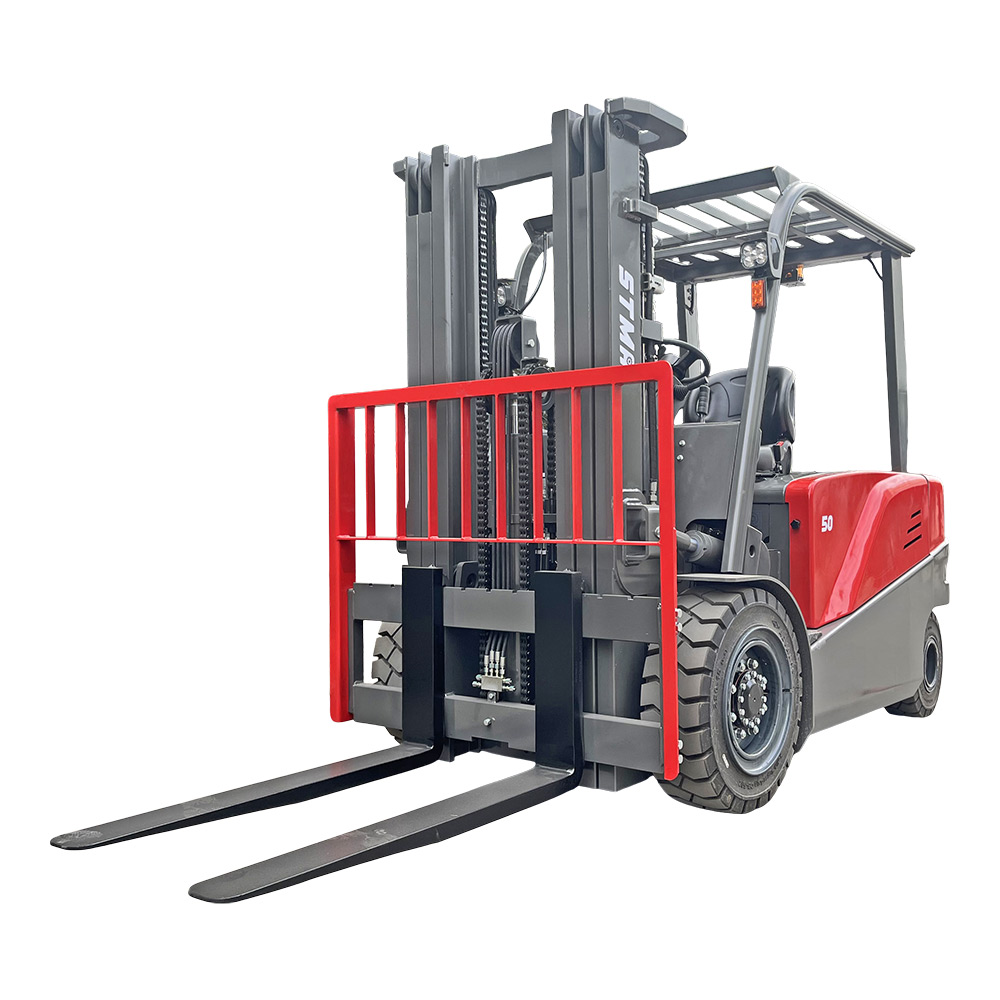

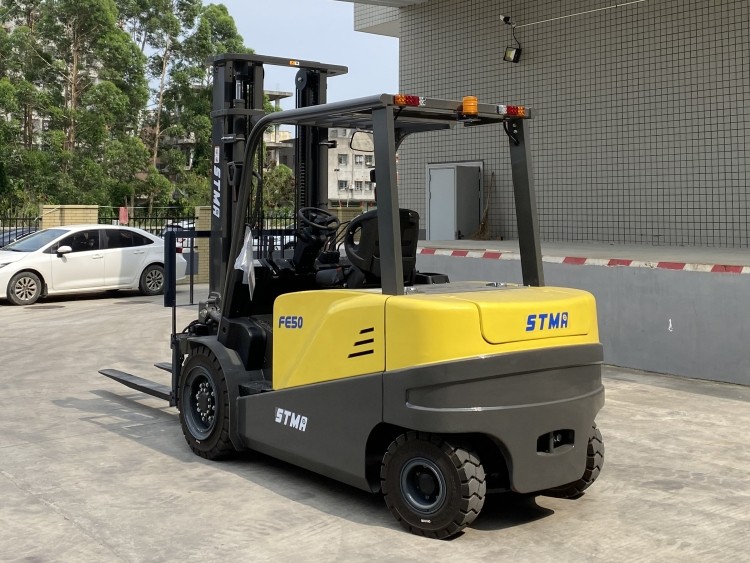

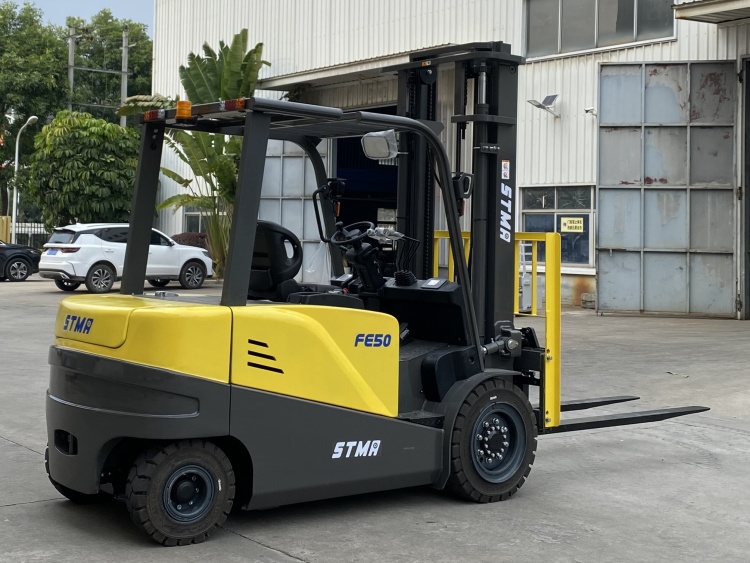

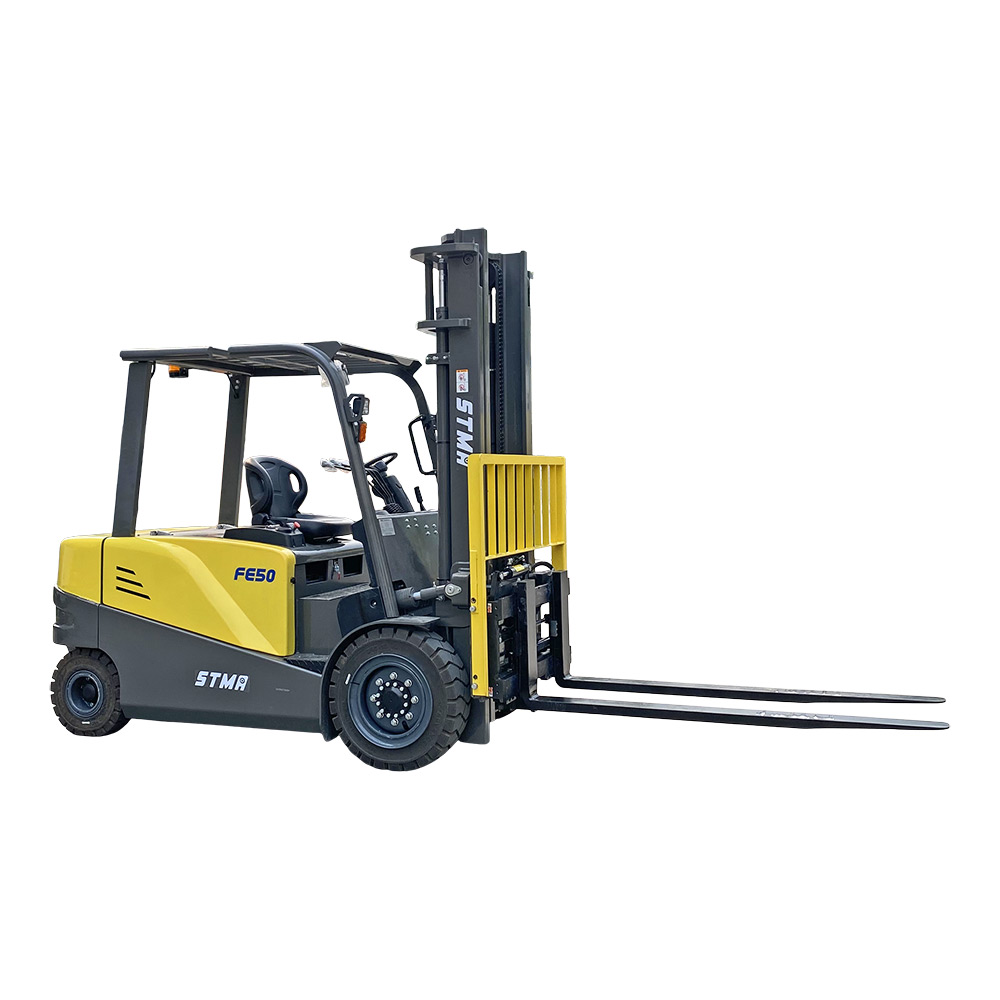

Model

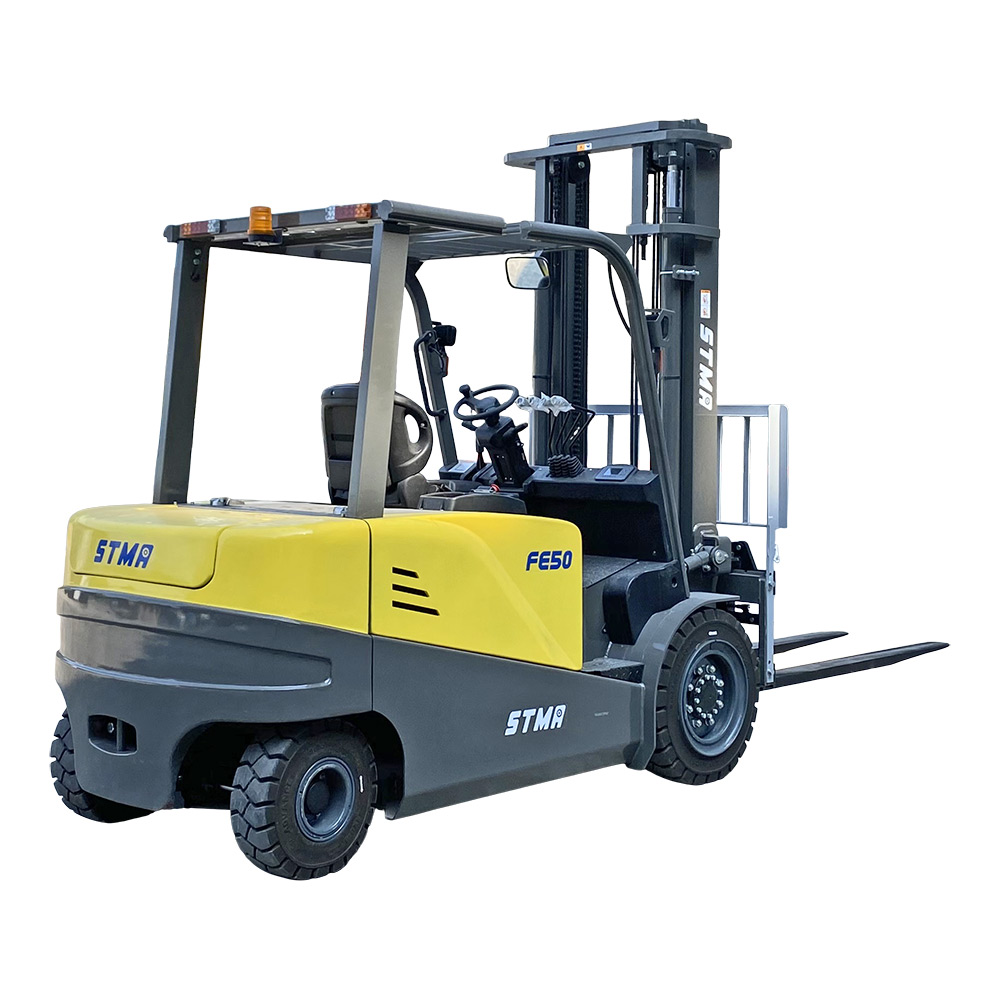

FE50

1.3

Power type

Battery

1.4

Operation

Seated

1.5

Load capacity

Q(kg)

5000

1.6

Load center distance

C(mm)

500

1.8

Front overhang

x(mm)

530

1.9

Wheelbase

y(mm)

2000

Weights

2.1

Service Weight(incl.battery)

kg

7100

Wheels

3.1

Tyre type,front/rear

Solid rubber

3.2

Tyre size, rear

mm

540×205-230

3.3

Tyre size, front

mm

 250-381

3.5

Wheels,number front/rear (X=driven)

2x/2

3.6

Track width, front

b10(mm)

1225

3.7

Track width, rear

b11(mm)

1025

Dimensions

4.1

Mast tilt angle front/rear

α/β(°)

6/11

4.2

Mast retracted height

h1(mm)

2810

4.3

Free Lift height

h2(mm)

1535

4.4

Lift height

h3(mm)

6000

4.5

Mast extended height

h4(mm)

7315

4.7

Overhead guard height

h6(mm)

2250

4.8

Seat height

h7(mm)

1230

4.19

Overall length

L1(mm)

4060

4.20

Body to fork surface length

L2(mm)

2990

4.21

Overall width

b1/b2(mm)

1470/1350

4.22

Fork dimensions

l/e/s(mm)

1070/150/50

4.23

Installation level

3A

4.24

Fork carriage width

b3(mm)

1380

4.25

Fork outside spread

b5(mm)

320～1320

4.31

Ground clearance below mast

m1(mm)

120

4.32

Ground clearance,body

m2(mm)

120

4.34

Aisle width with pallet 1000*1200mm, C=500mm

Ast(mm)

4490

Aisle width with pallet 800*1200mm, C=600mm

Ast(mm)

4690

4.35

Turning radius

Wa(mm)

2690

Performance

5.1

Travelling speed, laden/unladen

km/h

12/13

5.2

Lift speed, laden/unladen

mm/s

200/220

5.3

Lowering speed, laden/unladen

mm/s

270/290

5.5

Traction,(S2-5min)

N

15680

5.8

Gradeability, laden/unladen (S2-5min)

%(tanθ )

15/15

5.10

Service brake

Mechanical hydraulic

Drive

6.1

Drive motor, rating S2=60

kw

AC16.6

6.2

Lift motor, rating S3=15%

kw

AC15

6.4

Battery voltage/nominal capacity

V/Ah

80/630

6.5

Battery weight

kg

1690

6.6

Steering system

Hydraulic
