Multi-directional Reach Trucks
1、Load capacity and lifting: Rated load 1–3 tons, lifting height commonly 3–10.5 meters, suitable for both horizontal transport and high-level stacking. 2、Flexible adaptation: Can be equipped with three-way rotating forks for three-way stacking and omnidirectional travel, suitable for ultra-narrow automated warehouses.
-
Feature
Rated capaity:2000-3500kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-7000mm
-
Feature
Controller：Domestic Controller/Curtis controller
description

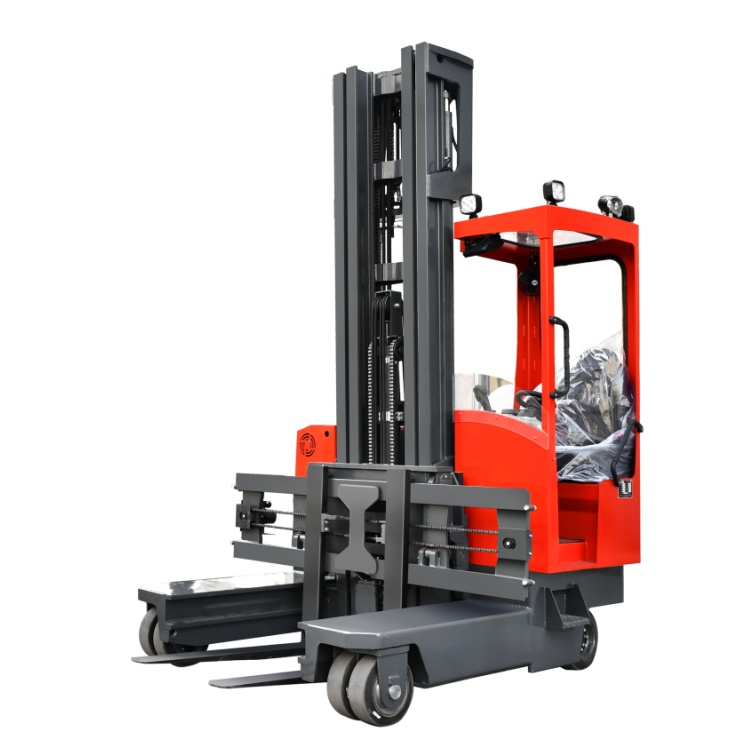

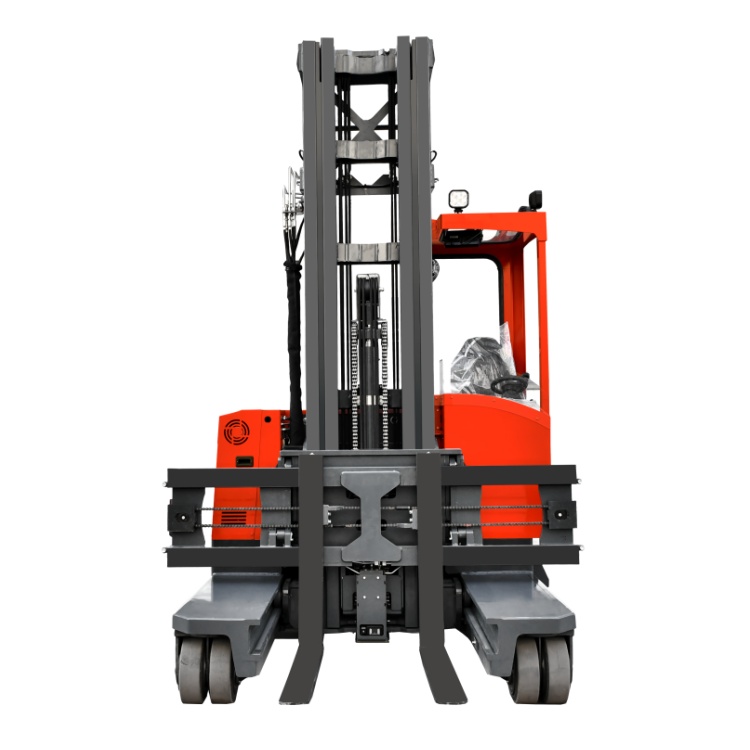

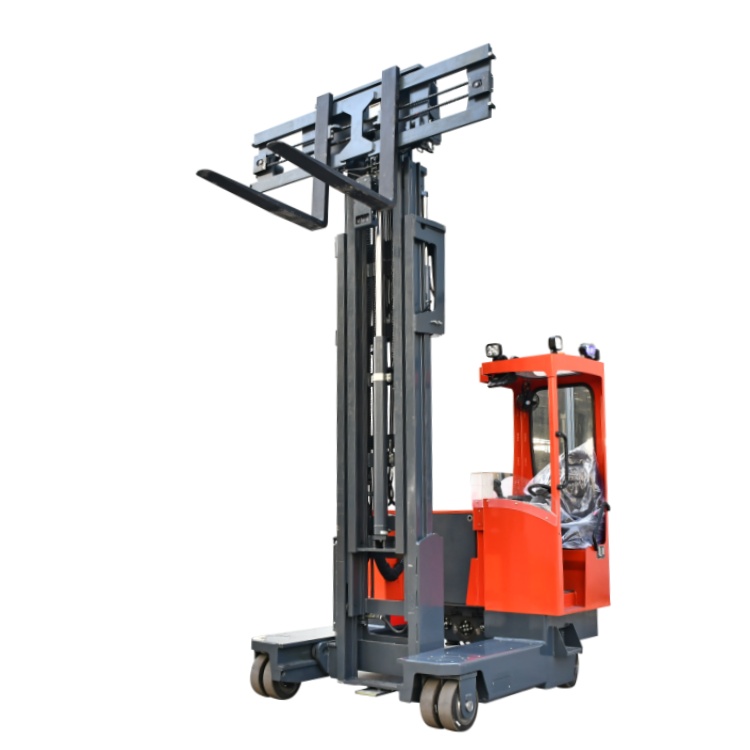

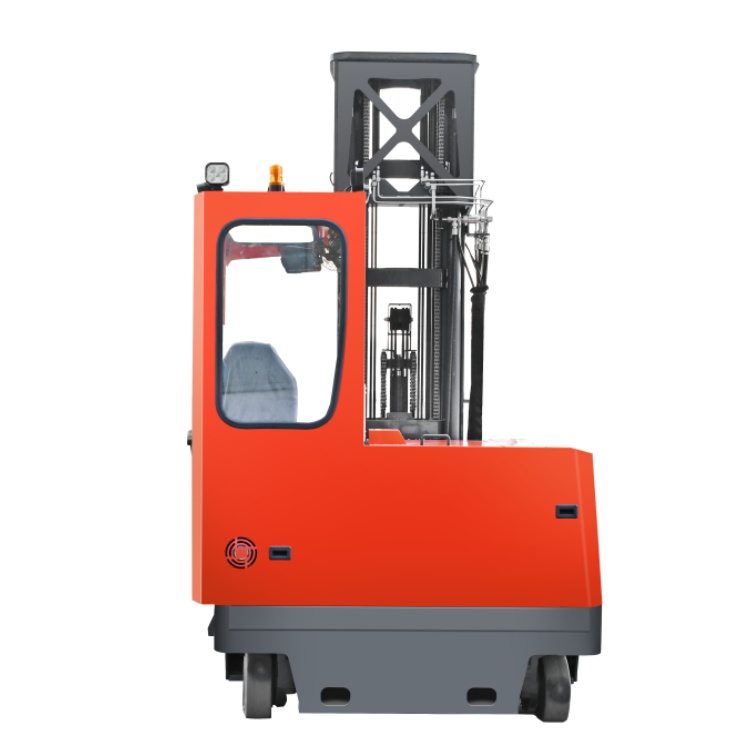

STMA Electric Power Multi-directional Reach Trucks With 8000mm Lifting Height
Specifications:
| Model No. | CQD20Q | CQD25Q | CQD30Q | CQD40Q | |
| Power type | Electric | Electric | Electric | Electric | |
| Operation type | Seated Type | Seated Type | Seated Type | Seated Type | |
| Load capacity | Q(kg) | 2000 | 2500 | 3000 | 4000 |
| Load center | C(mm) | 500 | 500 | 599 | 600 |
| Wheelbase | Y(mm) | 1326 | 1326 | 1800 | 1800 |
| Total weight with battery | kg | 4200 | 4200 | 7900 | 7900 |
| Wheel type | PU | PU | PU | PU | |
| Drive wheel | 457*160 | 457*160 | 457*160 | 457*160 | |
| Wheel tread,front wheel | b10(mm) | 1520 | 1520 | 1520 | 1520 |
| Mast lowered height | h1(mm) | 2100 | 2100 | 2100 | 2100 |
| Fork tilting angle Front/rear | ° | 3/5 | 3/5 | 3/5 | 3/5 |
| Free lift height | h2(mm) | 1500 | 1500 | 1500 | 1500 |
| Lift height | h3(mm) | 4500 | 4500 | 4500 | 4500 |
| Max.height when lifting | h4(mm) | 6915 | 6916 | 7140 | 7141 |
| Height of overhead guards | |||||
| Outrigger height | h13(mm) | 506 | 507 | 508 | 509 |
| Overall length(With fork) | l2(mm) | 2080 | 2080 | 2300 | 2300 |
| Overall width | b1(mm) | 2430 | 2430 | 2650 | 2650 |
| Fork size | s/e/l(mm) | 40/120/1070 | 45/120/1070 | 45/120/1220 | 50/125/1220 |
| Fork adjustment size | b5(mm) | 250-700 | 250-700 | 250-700 | 250-700 |
| Reach distance | L4(mm) | 1100 | 1100 | 1300 | 1300 |
| Min.ground clearance | m2(mm) | 70 | 70 | 70 | 70 |
| Aisle width of side operation | b2(mm) | 2630 | 2630 | 2850 | 2850 |
| Max.travel speed(unload/load) | km/h | 8/6 | 8/6 | 8/6 | 8/6 |
| Lifting speed(unload/load) | mm/s | 260/230 | 260/230 | 260/230 | 260/230 |
| Lowering speed(unload/load) | mm/s | 210/310 | 210/310 | 210/310 | 210/310 |
| Max.grade ability(unload/load) | ％ | 8/6 | 8/6 | 8/6 | 8/6 |
| Brake type | Electromagnetism | Electromagnetism | Electromagnetism | Electromagnetism | |
| Driving motor | kw | 6.5 | 6.5 | 2X6.5 | 2X6.5 |
| Lifting motor | kw | 8.2 | 8.2 | 12 | 12 |
| Battery type | Lead Acid | Lead Acid | Lead Acid | Lead Acid | |
| Battery capacity | V/Ah | 48V400Ah | 48V450Ah | 48V600Ah | 48V800Ah |
| Charger | V/Ah | 48V/50A | 48V/50A | 48V/80A | 48V/100A |
| Drive controlling type | AC | AC | AC | AC | |
| Steering system | EPS | EPS | EPS | EPS |
