1000KG order picker
Welcome to inquiry us to get more discounts and spare parts!
-
Feature
Rated capaity: 1000kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-6000mm
-
Feature
Controller：Domestic Controller/Curtis controller
description

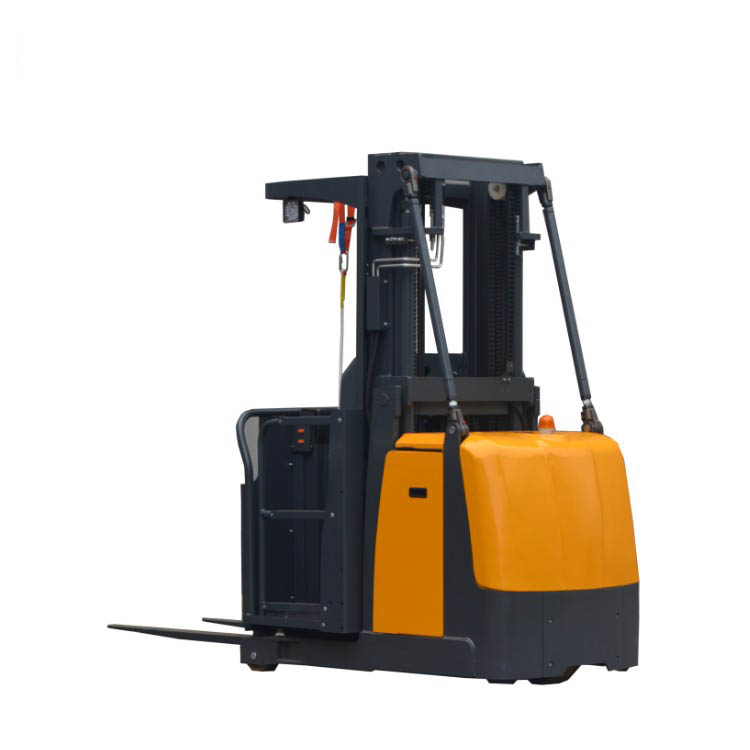

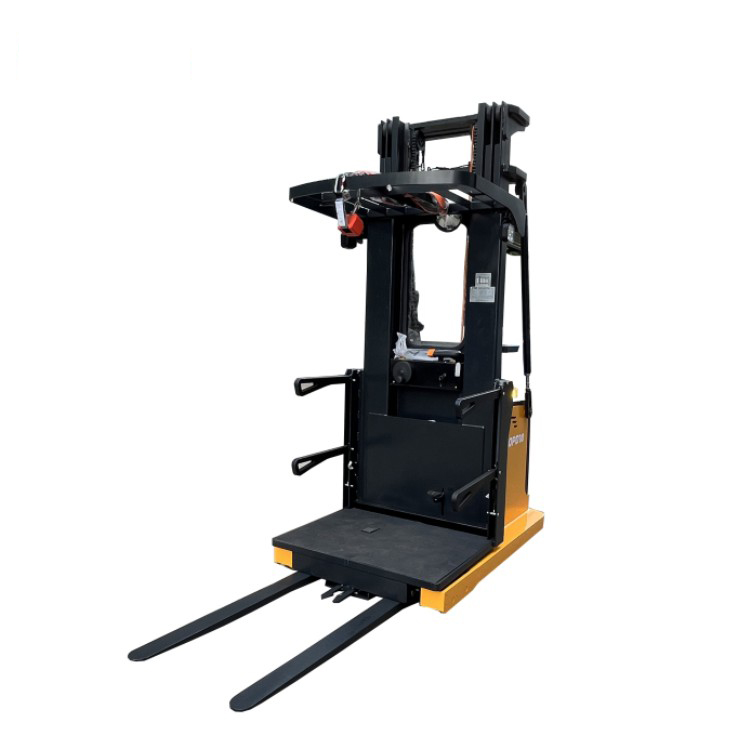

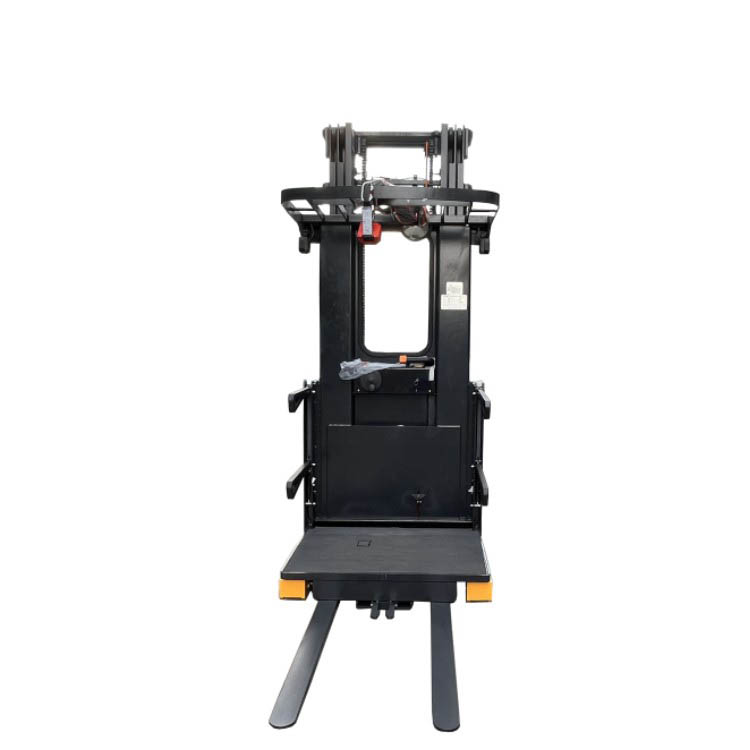

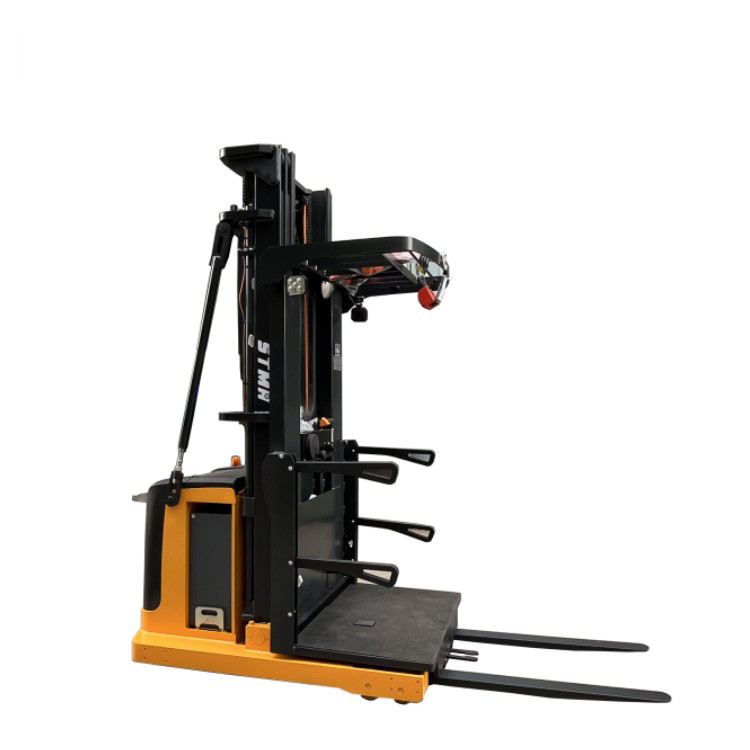

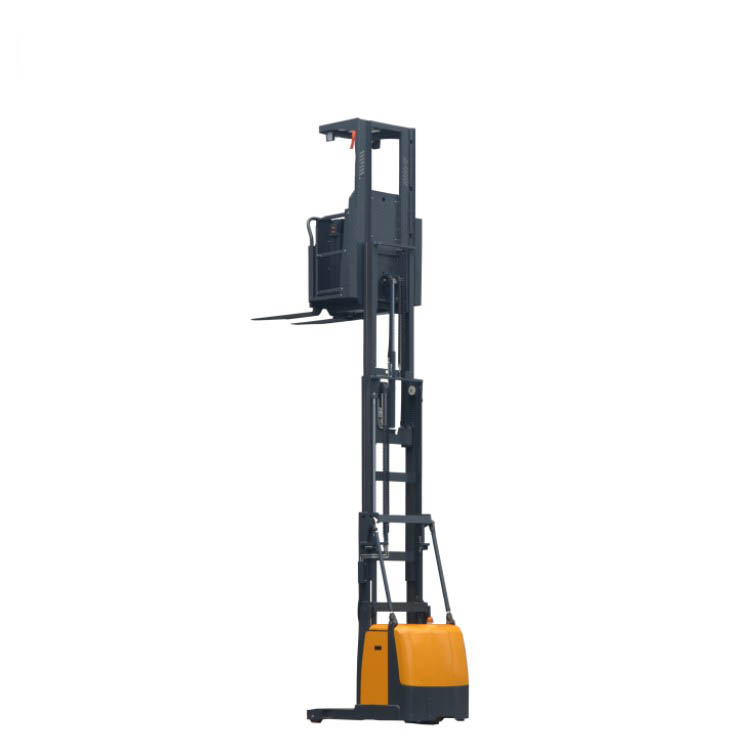

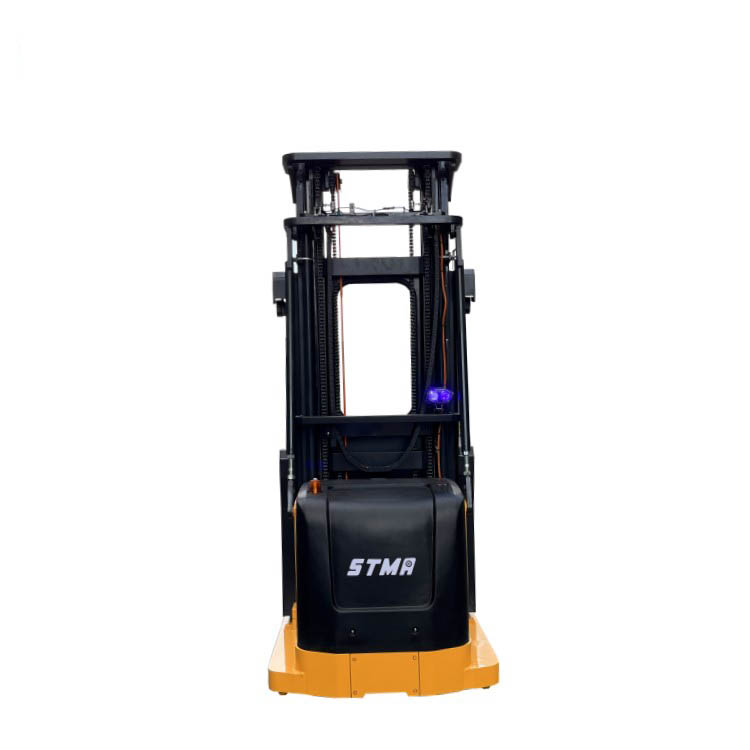

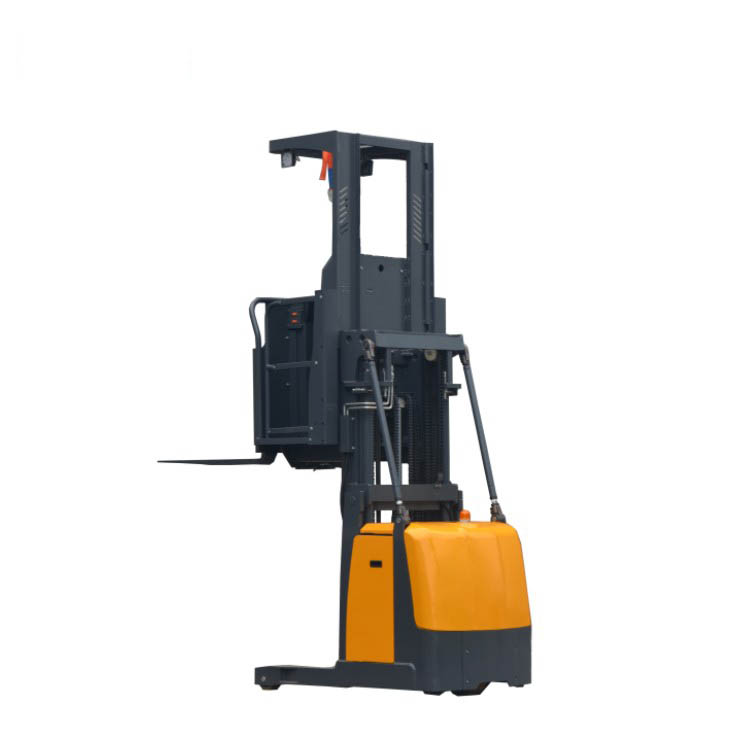

STMA brand 1000KG electric power order picker with 6000mm lifting height
Features:
Specifications:
| 1.1 | Model | OPD10-45S | OPD15-45S | |
| 1.2 | Operation Mode | Picking Type | Picking Type | |
| 1.3 | Load Capacity | Q(kg) | 1000 | 1500 |
| 1.4 | Load Center | C(mm) | 500 | 500 |
| 1.5 | Wheelbase | Y(mm) | 1425 | 1845 |
| 2.1 | Self-weight (With Battery) | kg | 2600 | 3000 |
| 3.1 | Wheel Type | PU Solid Tire | PU Solid Tire | |
| 3.2 | Front Wheel | ∅×w(mm) | 180*76 | 180*70 |
| 3.3 | Driving Wheel | ∅×w(mm) | 254*102 | 382*142 |
| 3.4 | Balance Wheel | ∅×w(mm) | 125*50 | / |
| 3.5 | Wheel Tread, Front Wheel | b10(mm) | 1010 | 1160 |
| 3.6 | Wheel Tread, rear wheel | b11(mm) | 784 | / |
| 4.1 | Lifting Height | h3(mm) | 4500 | 4500 |
| 4.2 | Height,mast entended | h4(mm) | 6670 | 6670 |
| 4.3 | Height of overhead guards | h14(mm) | 2210 | 2120 |
| 4.4 | Vehicle body length (Without Fork) | l2(mm) | 1865 | 2500 |
| 4.5 | Vehicle Body Width | b1(mm) | 1130 | 1300 |
| 4.6 | Fork Size | s/e/l(mm) | 35/100/920 | 40/122/920 |
| 4.7 | Fork Spread | b5(mm) | 210-770 | 210-770 |
| 4.8 | Min. ground clearance (wheelbase center) | m2(mm) | 50 | 60 |
| 4.9 | Aisle Width, pallet 1000×1200 (1200 placed across forks) | Ast(mm) | 3256 | 3670 |
| 4.1 | Min. turning radius | Wa(mm) | 1657 | 2140 |
| 5.1 | Driving Speed, Unladen/Laden | km/h | 5/3 | 5/3 |
| 5.2 | Max. gradeability, Unladen/Laden | ％ | 10/6 | 10/6 |
| 5.3 | Service Brake | Electromagnetic | Electromagnetic | |
| 6.1 | Drive Motor | kw | 2.5 | 6.5 |
| 6.2 | Lifting Speed, Unladen/Laden | m/s | 0.110/0.100 | 0.275/0.215 |
| 6.3 | Lowering Speed, Unladen/Laden | m/s | 0.75/0.080 | 0.150/0.195 |
| 6.4 | Lift Motor | kw | 3 | 6.3 |
| 6.5 | Battery | Lead Lcid | Lead Lcid | |
| 6.6 | Battery voltage/nominal capacity | V/Ah | 24V300Ah | 48V300Ah |
| 6.7 | Charger | v/a | 24V/40A | 48V/40A |
| 8.1 | Type of drive control | AC | AC | |
| 8.2 | Sound level at the driver's ear acc. to EN12053 | dB(A) | 75 | 75 |
Mast Specifications:
| OPD10 Mast specifications | ||||
| lift height | Mast closed height | Free lift height | Mast extended height with load backrest | Rated load |
| 2500 | 1270 | 0 | 5670 | 1000 |
| 3000 | 1520 | 0 | 5920 | 1000 |
| 3500 | 1770 | 0 | 6170 | 850 |
| 4000 | 2020 | 0 | 6420 | 700 |
| 4500 | 2270 | 0 | 6670 | 530 |
| 5000 | 2520 | 0 | 6920 | 400 |
| 5500 | 2770 | 0 | 7170 | 280 |
| 6000 | 3020 | 0 | 7420 | 200 |
| OPD15 Mast specifications | ||||
| lift height | Mast closed height | Free lift height | Mast extended height with load backrest | Rated load |
| 2500 | 1270 | 0 | 5670 | 1500 |
| 3000 | 1520 | 0 | 5920 | 1500 |
| 3500 | 1770 | 0 | 6170 | 1200 |
| 4000 | 2020 | 0 | 6420 | 1000 |
| 4500 | 2270 | 0 | 6670 | 800 |
| 5000 | 2520 | 0 | 6920 | 600 |
| 5500 | 2770 | 0 | 7170 | 480 |
| 6000 | 3020 | 0 | 7420 | 350 |
