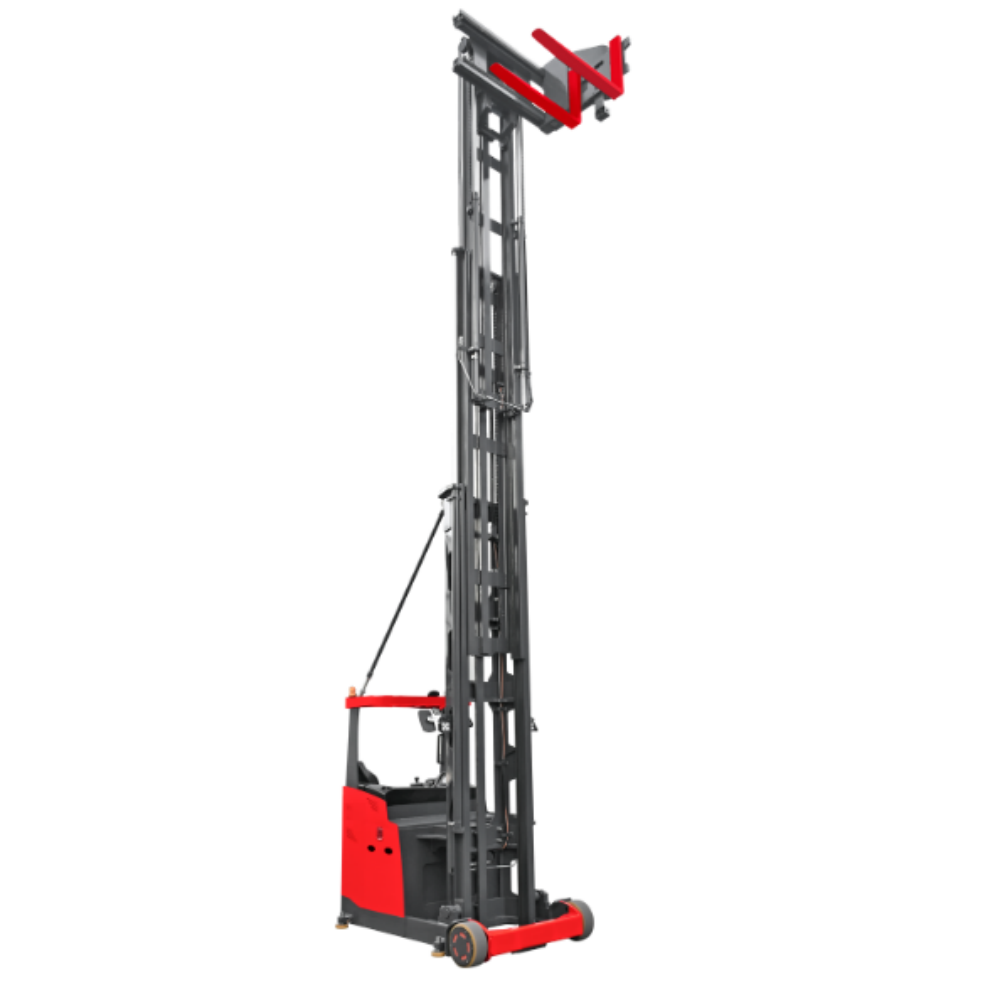

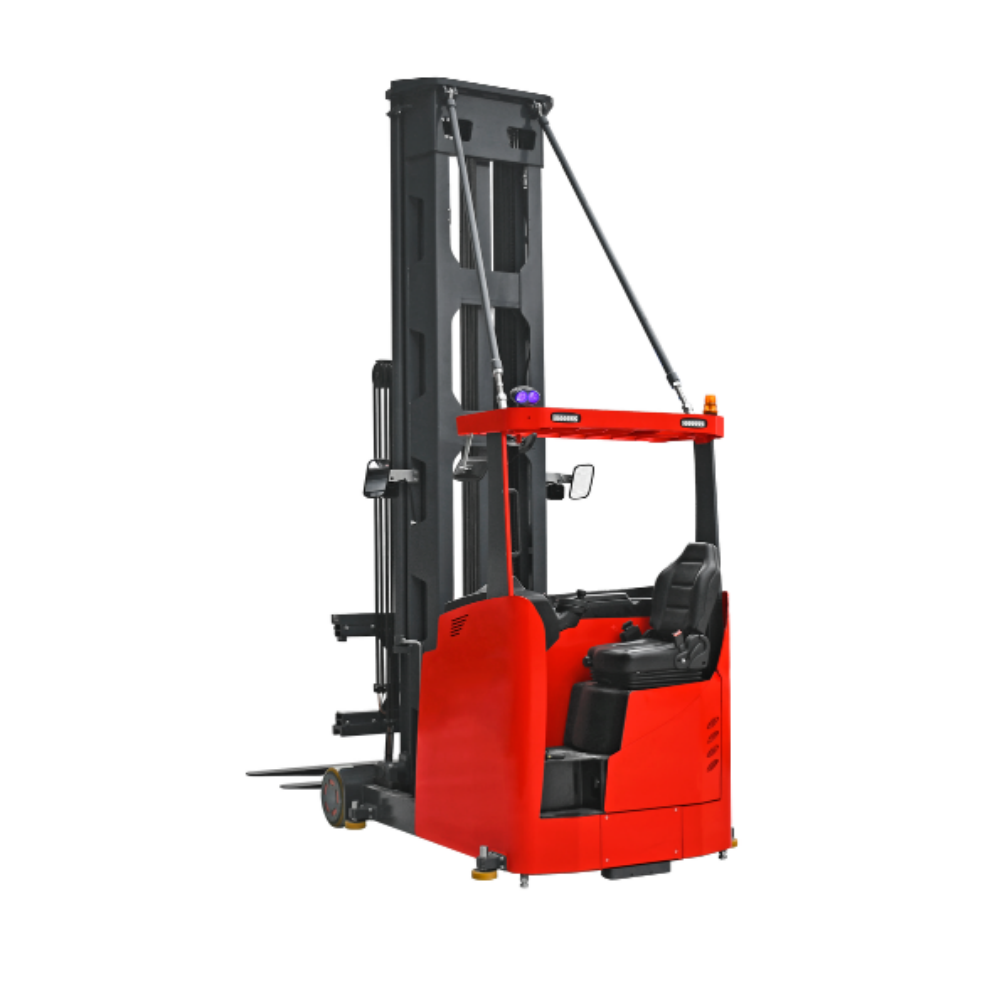

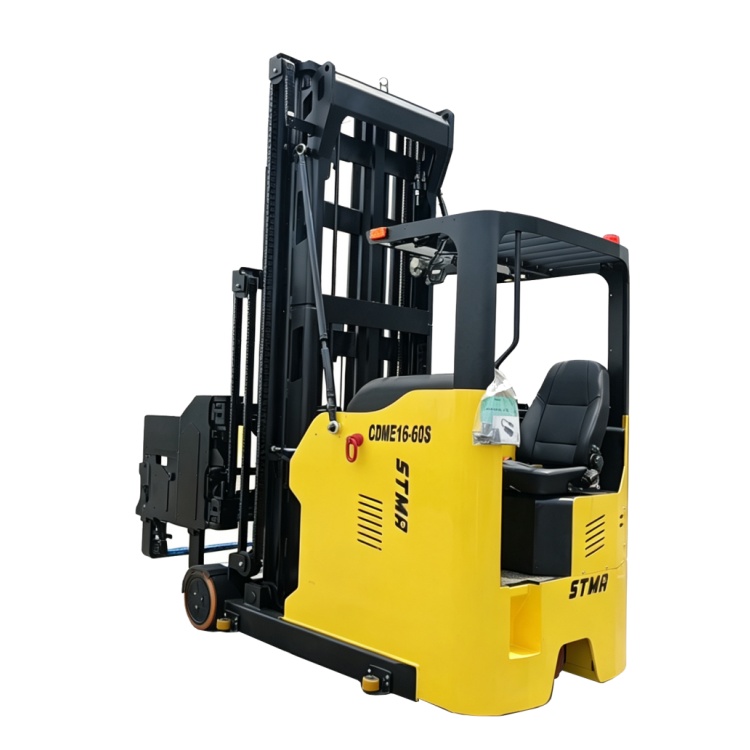

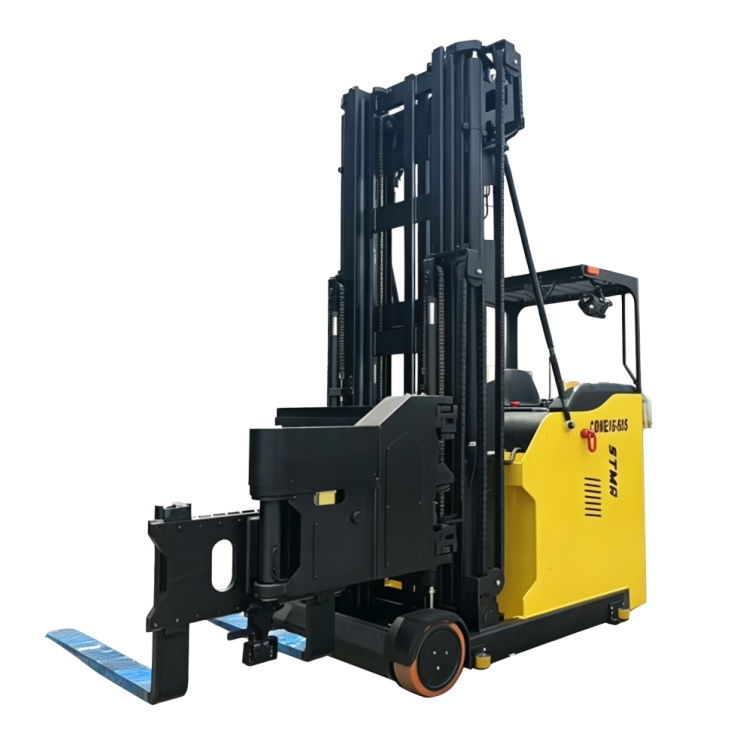

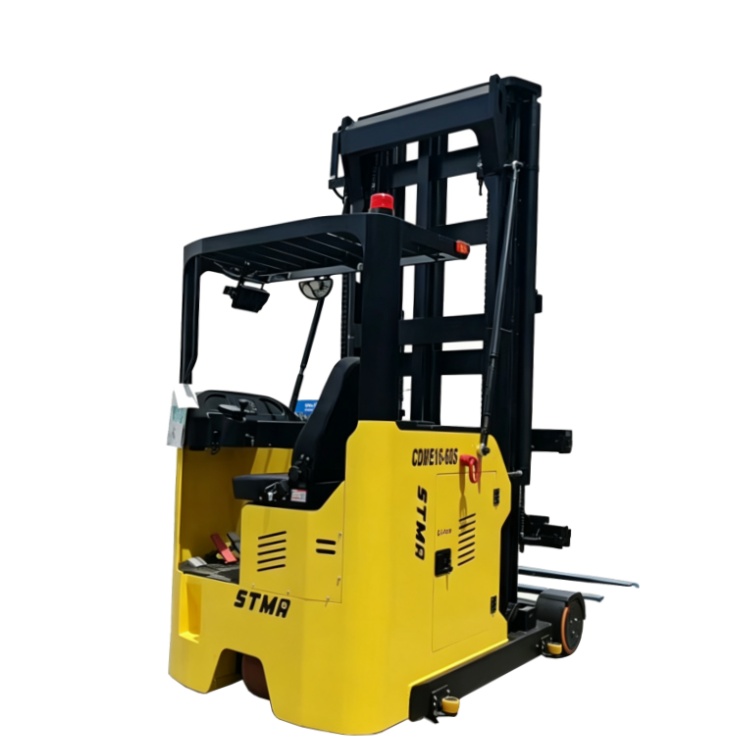

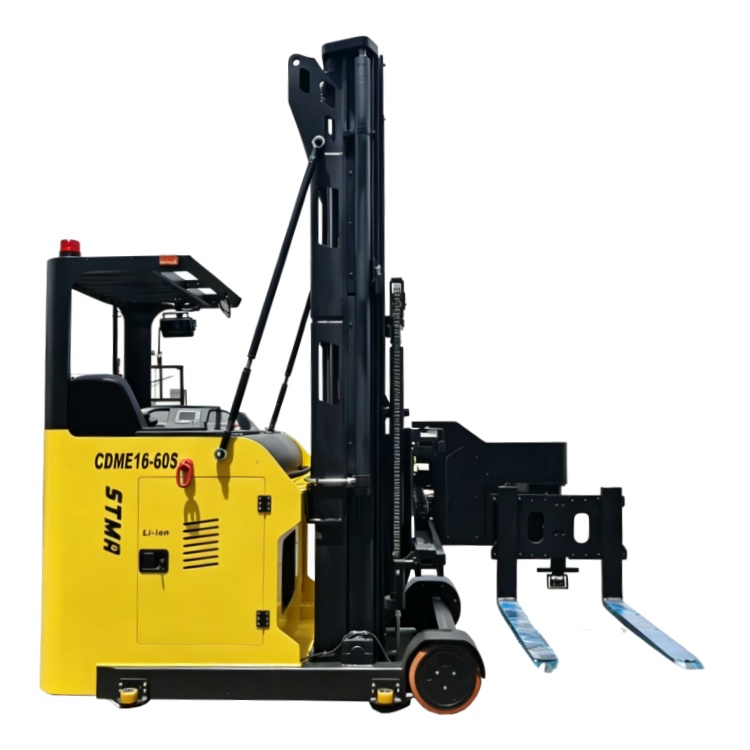

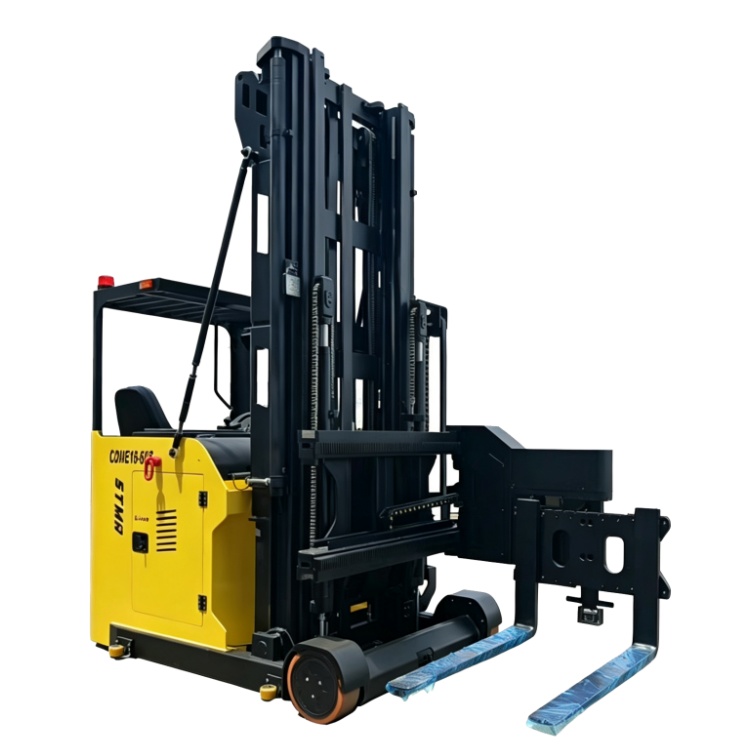

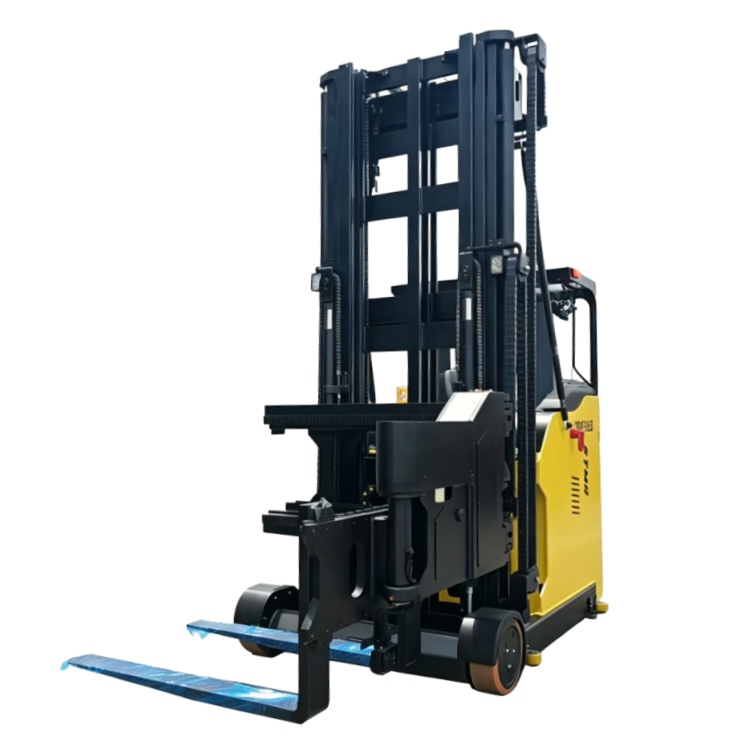

Three-Way Pallet Stacker With Seated Type
3. Multiple safety protections: OPS (two-hand + foot pedal sensors), overhead guard, speed limiter, collision avoidance, fork position detection, etc., preventing misoperation and fall risks. 4. Wide field of vision: Transparent overhead guard + optimized mast design, clear visibility for high-level operations. 5. User-friendly control panel: Adjustable angle/height, integrated panel, full-color instrument, reducing fatigue and improving the operating experience.
-
Feature
Rated capaity: 1500kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-9000mm
-
Feature
Controller：Domestic Controller/Curtis controller
description
STMA Three-Way Pallet Stacker With Seated Type
Specifications:
| Model | CDDM15E-60S | CDDM16E-60S | |
| Power Type | 电动 | 电动 | |
| Operation Type | 座驾式 | 座驾式 | |
| Load Capacity | Q(kg) | 1500 | 1600 |
| Load Center | C(mm) | 600 | 600 |
| Service Weight (With Battery) | kg | <6500 | <6600 |
| Wheel Type | 聚氨酯 | 聚氨酯 | |
| Driving Wheel | ∅×w(mm) | Ф400*160 | Ф400*160 |
| Front Wheel | ∅×w(mm) | Ф145*100 | Ф145*100 |
| Balance Wheel | b10(mm) | 1305 | 1305 |
| Wheel Tread (Front) | y(mm) | 1700 | 1800 |
| Mast Lowered Height | h1(mm) | 3400 | 3400 |
| FreeLift | h2(mm) | 2235 | 2235 |
| Lift Height | h3(mm) | 6000 | 6000 |
| Height,mast entended | h4(mm) | 7125 | 7125 |
| Height of overhead Guards | h14(mm) | 2180 | 2250 |
| Overall Length (Body/Overall) | l2(mm) | 2960 | 3330 |
| Overall Width | b1(mm) | 1550 | 1550 |
| Anti-collision guardrails width | (mm) | 1600 | 1600 |
| Fork Size | s/e/l(mm) | 45/125/1200 | 45/125/1200 |
| Fork Spread (Customizable) | b5(mm) | 260-650（可定制） | 260-650（可定制） |
| Min.Ground Clearance | m2(mm) | 32 | 32 |
| Aisle Width | Ast(mm) | 1600（1200*1200托盘） | 1600（1200*1200托盘） |
| Channel Guide Rail Height | （mm） | 120 | 120 |
| Min. Turning Radius | Wa(mm) | 2020 | 2080 |
| Main AisleWidth | mm | 3595+400 | 3595+400 |
| Max. Travel Speed (Unladen/Laden) | km/h | 8/7 | 8/7 |
| Lifting Speed (Unladen/Laden) | m/s | 0.30/0.26 | 0.30/0.30 |
| Lowering Speed (Unladen/Laden) | m/s | 0.36/0.39 | 0.34/0.34 |
| Driving Brake | 电磁制动 | 电磁制动 | |
| Drive Motor | kw | 8 AC | 8 AC |
| Lift Motor | kw | 15AC | 15AC |
| Battery Type | 铅酸电池 | 铅酸电池 | |
| Battery voltage/nominal capacity | V/Ah | 48V/400Ah | 48V/400Ah |
| Charger | V/Ah | 48V/50A | 48V/50A |
| Type of Drive Control | 交流 | 交流 |
