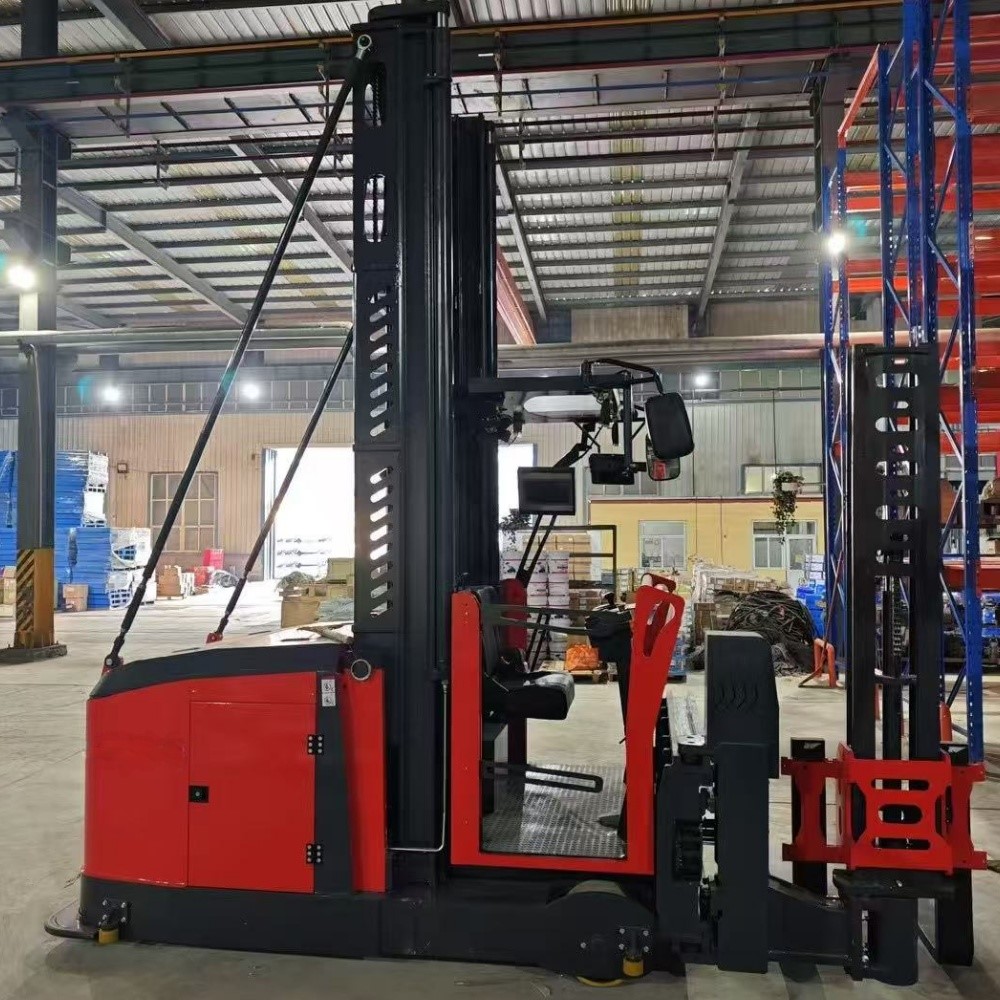

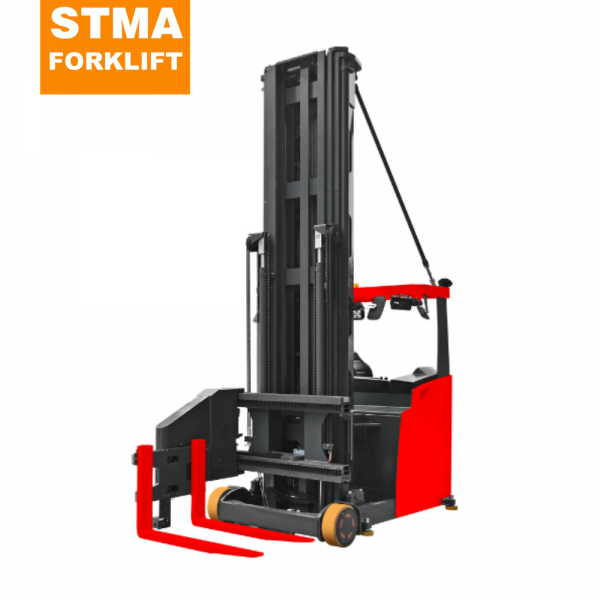

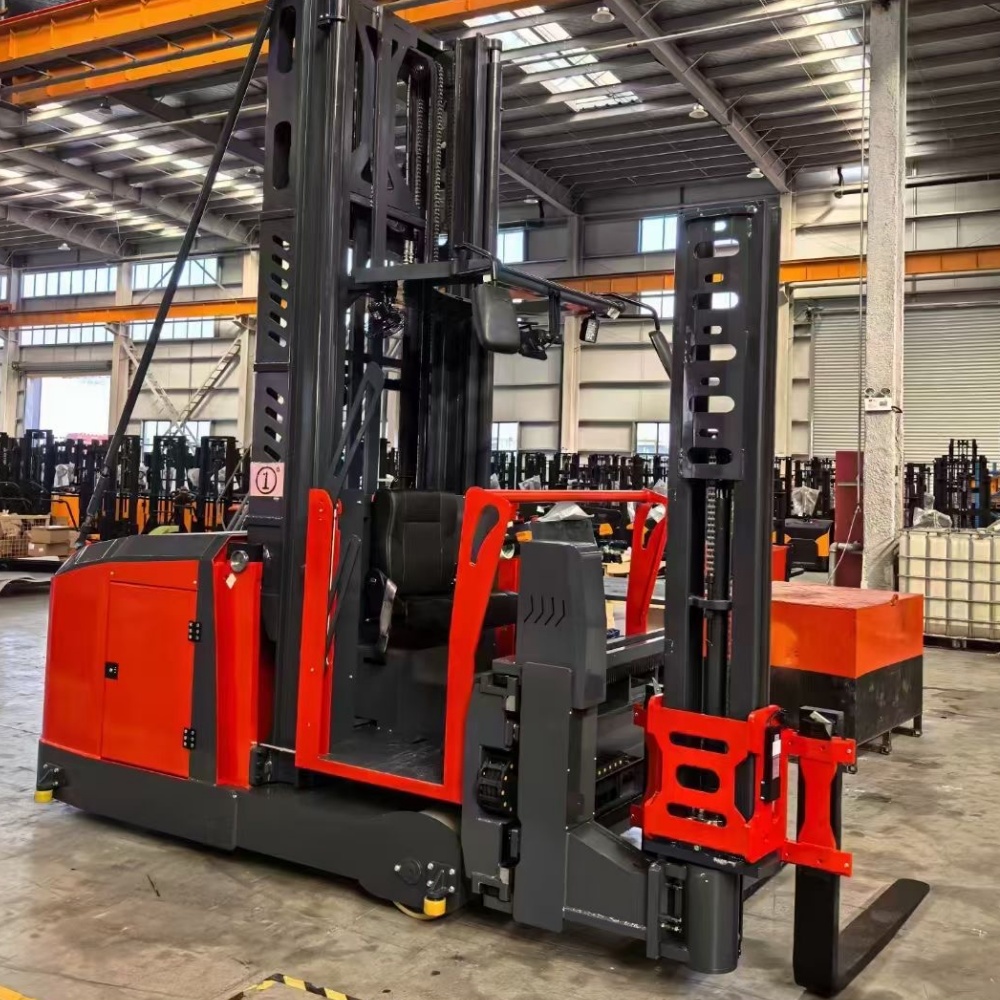

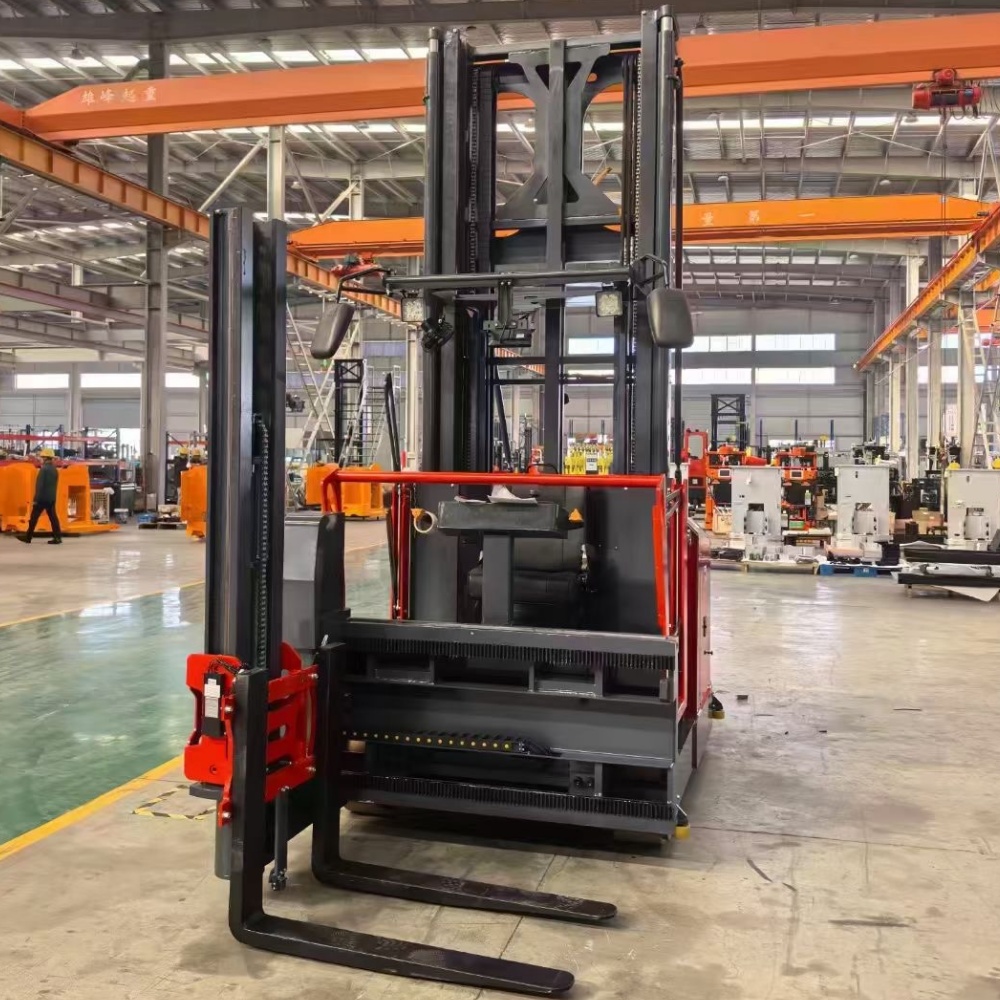

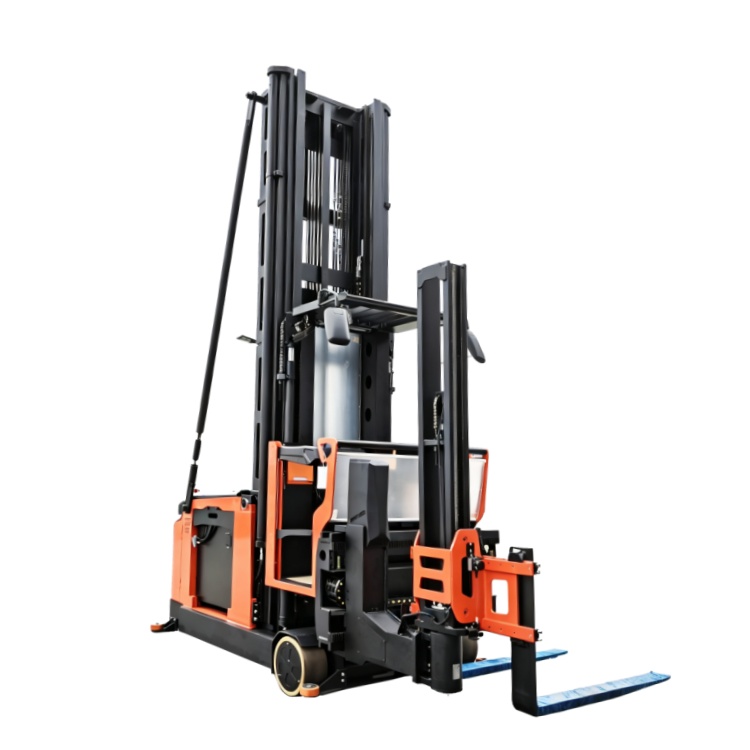

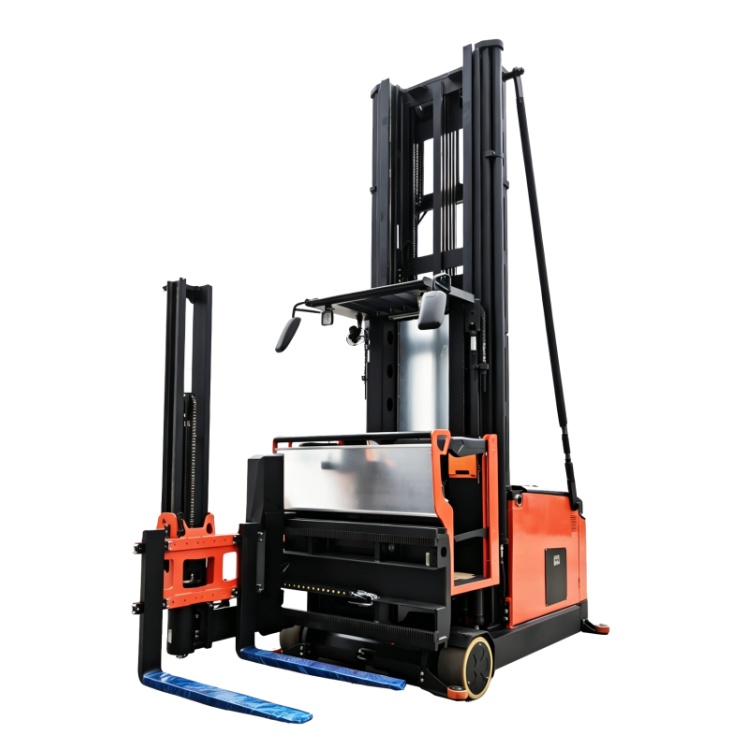

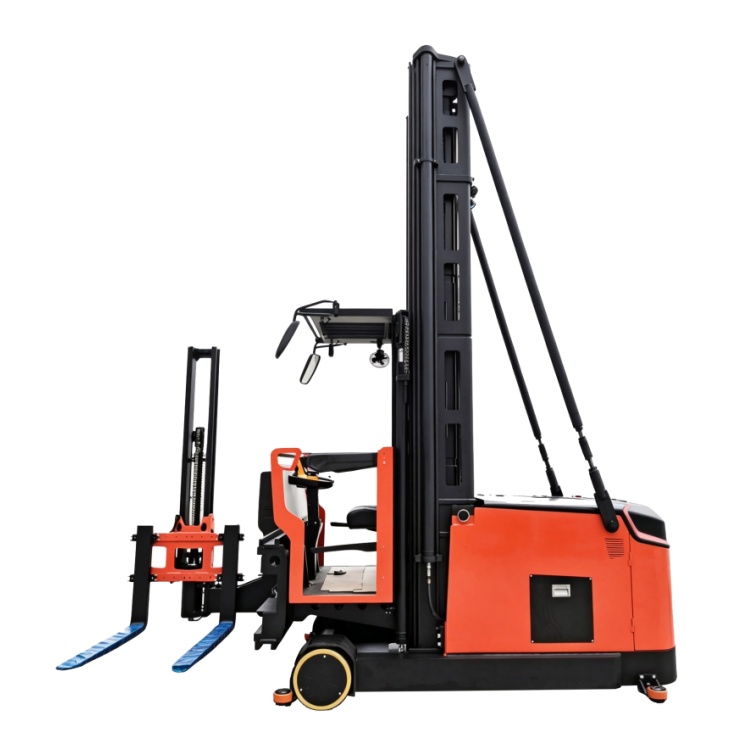

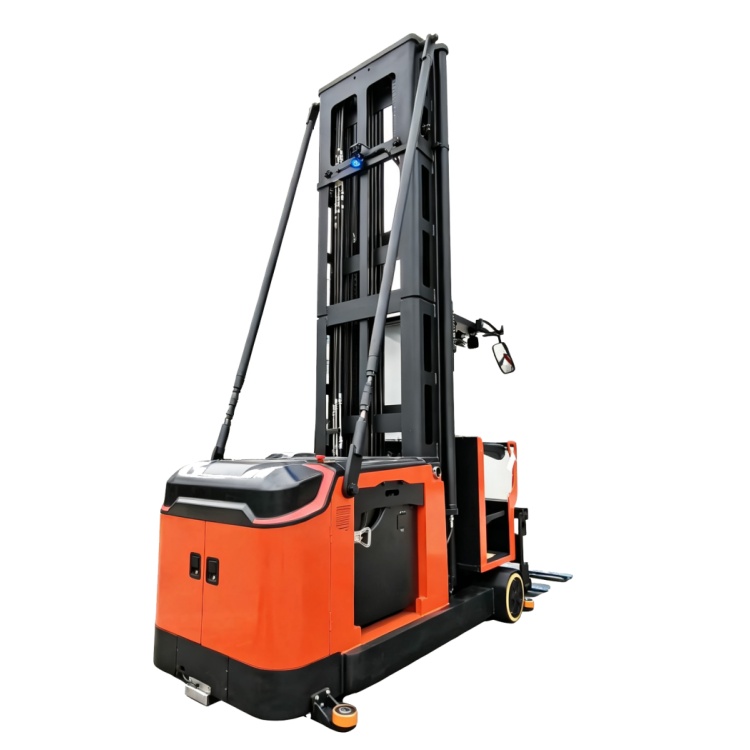

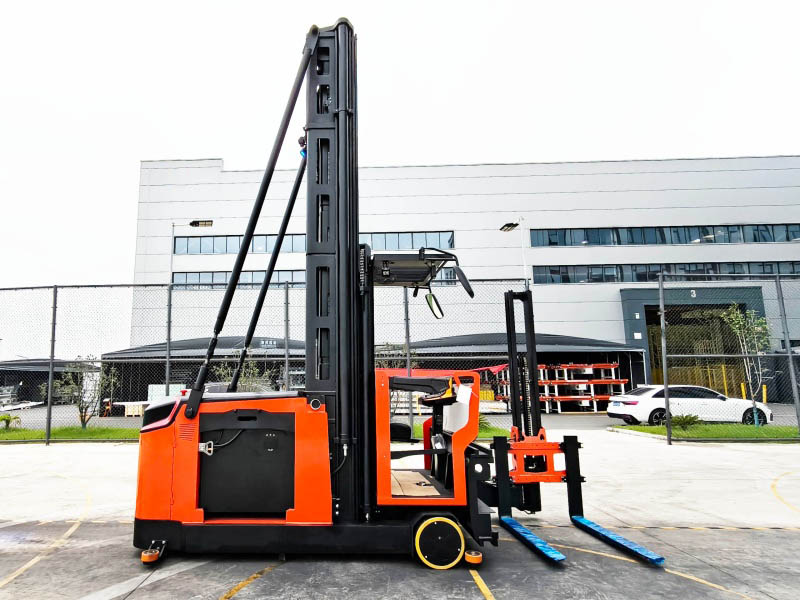

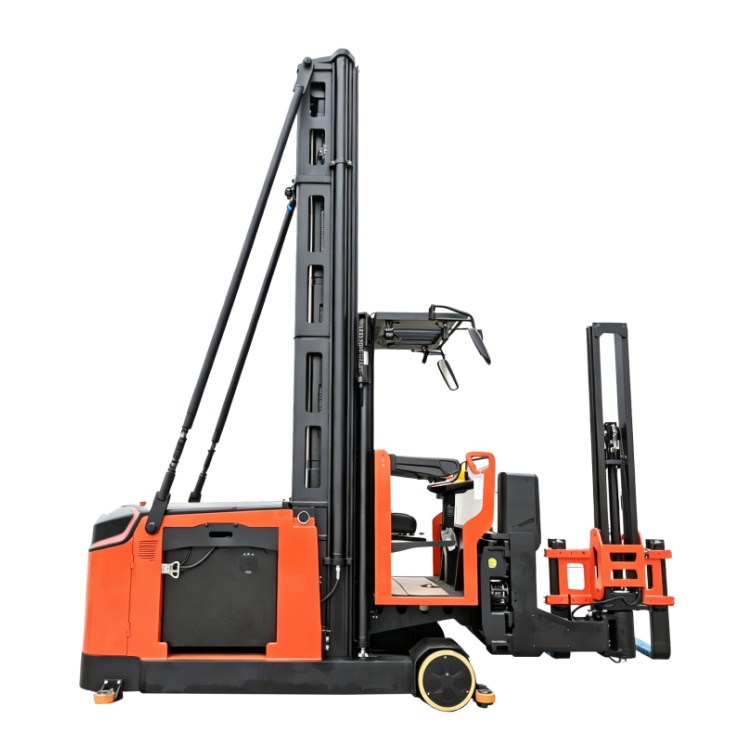

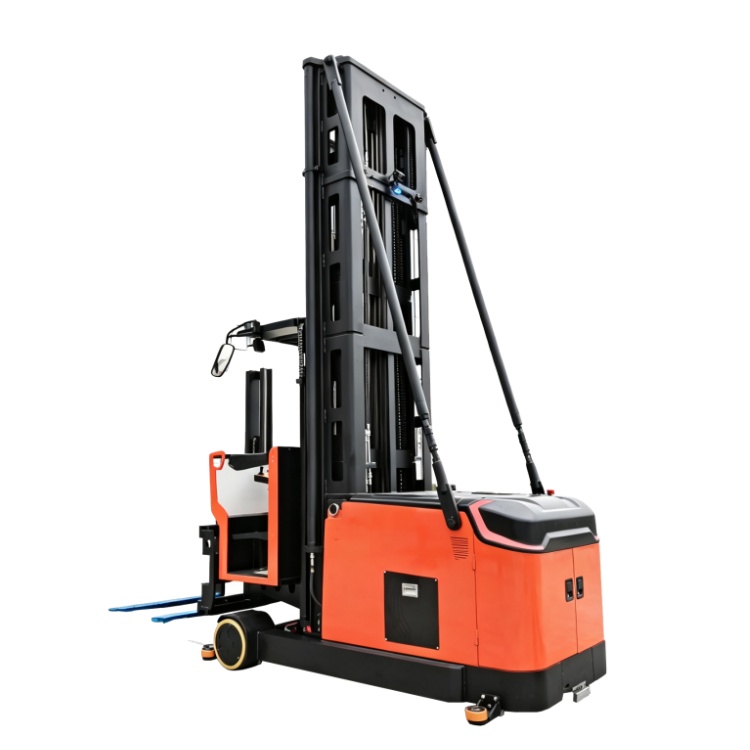

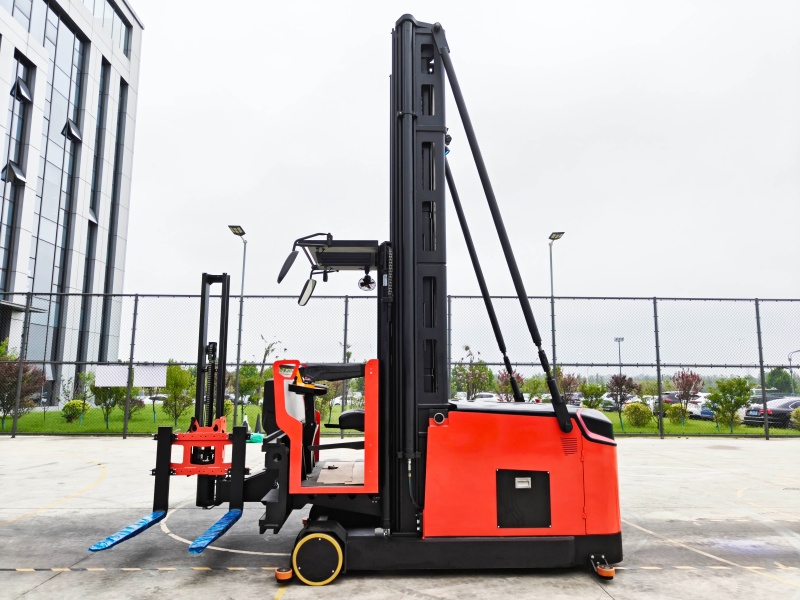

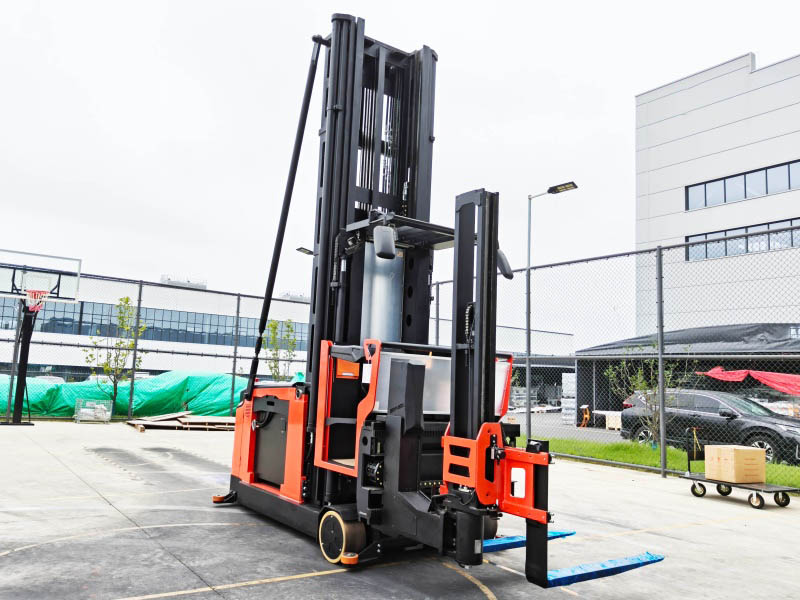

Man-up turret truck
Three-way operation, no turning required: The forks can rotate 180° and move left and right, while the vehicle body remains stationary to complete the picking and placing of goods in the front, left and right directions of the aisle. The minimum clear passage is only 1600-1700mm.
-
Feature
Rated capaity: 1000-1500kg
-
Feature
Load centre: 500mm
-
Feature
Lifting Height: 3000-10500mm
-
Feature
Controller：Domestic Controller/Curtis controller
description
STMA man-up turret truck
Speicifations:
| 1.1 | Model | CDMX16-145S | |
| 1.2 | Load Capacity | Q(kg) | 1600 |
| 1.3 | Loading Center | C(mm) | 600 |
| 1.4 | loading Distance | X(mm) | 460 |
| 1.5 | Wheelbase | Y(mm) | 2230 |
| 2.1 | Service Weight (With Battery) | kg | 11670 |
| 3.1 | Wheel Type | 聚氨酯 | |
| 3.2 | Front Wheel | ∅×w(mm) | φ380x192 |
| 3.3 | Driving Wheel | ∅×w(mm) | φ406x170 |
| 3.4 | Wheel Qty Front/Driving | 2/1X | |
| 3.5 | Wheels Tread Front | b10(mm) | 1310 |
| 4.1 | Height of Mast Lowered | h1(mm) | 5950 |
| 4.2 | Free Lift (Auxiliary Mast) | h2(mm) | 1500 |
| 4.3 | Lifting Height | h3(mm) | 14500 |
| 4.4 | Height,mast entended | h4(mm) | 15600 |
| 4.5 | Overhead Guards | h14(mm) | 2580 |
| 4.6 | Height of the standing board above the ground | h13(mm) | 485 |
| 4.7 | Overall Length | l1(mm) | 4015 |
| 4.8 | Distance between the rotating center of the fork and the center of the front axle | l2(mm) | 1095 |
| 4.9 | Overall Width | b1(mm) | 1560 |
| 4.10 | Fork outer width | b5(mm) | 260-725 |
| 4.11 | Fork Size | s/e/l(mm) | 50*125*1200 |
| 4.12 | Auxiliary Wheel Outer Width | b5(mm) | 1635 |
| 4.13 | Min. Ground Clearance | m2(mm) | 90 |
| 4.14 | Aisle Width For Pallets 1200×1200 | Ast(mm) | 1700 |
| 4.15 | Main Aisle Width | mm | 4465+400 |
| 4.16 | Height Of The Guide Rail | mm | 180 |
| 4.17 | Min Turning Radius | Wa(mm) | 2600 |
| 5.1 | Travel Speed,Unladen/Laden | km/h | 10/9 |
| 5.2 | Lifting Speed, Unladen/Laden | m/s | 0.32/0.32 |
| 5.3 | lowering Speed, Unladen/Laden | m/s | 0.38/0.4 |
| 5.8 | Gradeability, Unladen/Laden | ％ | ≤8 |
| 5.1 | Service Brake | 电磁 | |
| 6.1 | Drive Motor | kw | 10 |
| 6.2 | Lift Motor | kw | 21 |
| 6.3 | Battery Type | 铅酸 | |
| 6.4 | Batteryvoltage/nominal capacity | V/Ah | 80V600Ah |
| 6.5 | Steering motor | KW | 1.5 |
| 6.6 | Charger | V/A | 80V/80A |
| 8.1 | Type of Drive Control | 交流 |
Mast Specifications:
| Specifications of two mast | |||||
| Lifting Height | Main Lifting Height | Mast Closed Height | Secondary Lifting Height | Maximum Lifting Height | Load Capacity |
| 5500 | 4000 | 3500 | 1500 | 6495 | 1600 |
| 6000 | 4500 | 3750 | 1500 | 6995 | 1600 |
| 6500 | 5000 | 4000 | 1500 | 7495 | 1600 |
| 7000 | 5500 | 4250 | 1500 | 7995 | 1500 |
| 7500 | 6000 | 4500 | 1500 | 8495 | 1375 |
| 8000 | 6500 | 4750 | 1500 | 8995 | 1260 |
| 8500 | 7000 | 5050 | 1500 | 9495 | 1150 |
| 9000 | 7500 | 5300 | 1500 | 9995 | 1040 |
| 9500 | 8000 | 5550 | 1500 | 10495 | 925 |
| 10000 | 8500 | 5850 | 1500 | 10995 | 815 |
| 10500 | 9000 | 6100 | 1500 | 11495 | 700 |
| Specifications of three mast | |||||
| Lifting Height | Main Lifting Height | Mast Closed Height | Secondary Lifting Height | Maximum Lifting Height | Load Capacity |
| 14500 | 13000 | 5950 | 1500 | 15600 | |
| 14000 | 12500 | 5785 | 1500 | 15100 | |
| 13500 | 12000 | 5620 | 1500 | 14600 | |
| 13000 | 11500 | 5450 | 1500 | 14100 | |
| 12500 | 11000 | 5280 | 1500 | 13600 | |
| 12000 | 10500 | 5120 | 1500 | 13100 | |
| 11500 | 10000 | 4950 | 1500 | 12600 | |
| 11000 | 9500 | 4785 | 1500 | 12100 | |
| 10500 | 9000 | 4620 | 1500 | 11600 | |
| 10000 | 8500 | 4450 | 1500 | 11100 | |
| 9500 | 8000 | 4285 | 1500 | 10600 | |
| 9000 | 7500 | 4120 | 1500 | 10100 | |
| 8500 | 7000 | 3950 | 1500 | 9600 | |
| 8000 | 6500 | 3785 | 1500 | 9100 | |
| 7500 | 6000 | 3620 | 1500 | 8600 | |
| 7000 | 5500 | 3450 | 1500 | 8100 | |
| 6500 | 5000 | 3285 | 1500 | 7600 | |
| 6000 | 4500 | 3120 | 1500 | 7100 | |
| 5500 | 4000 | 2950 | 1500 | 6600 | |
