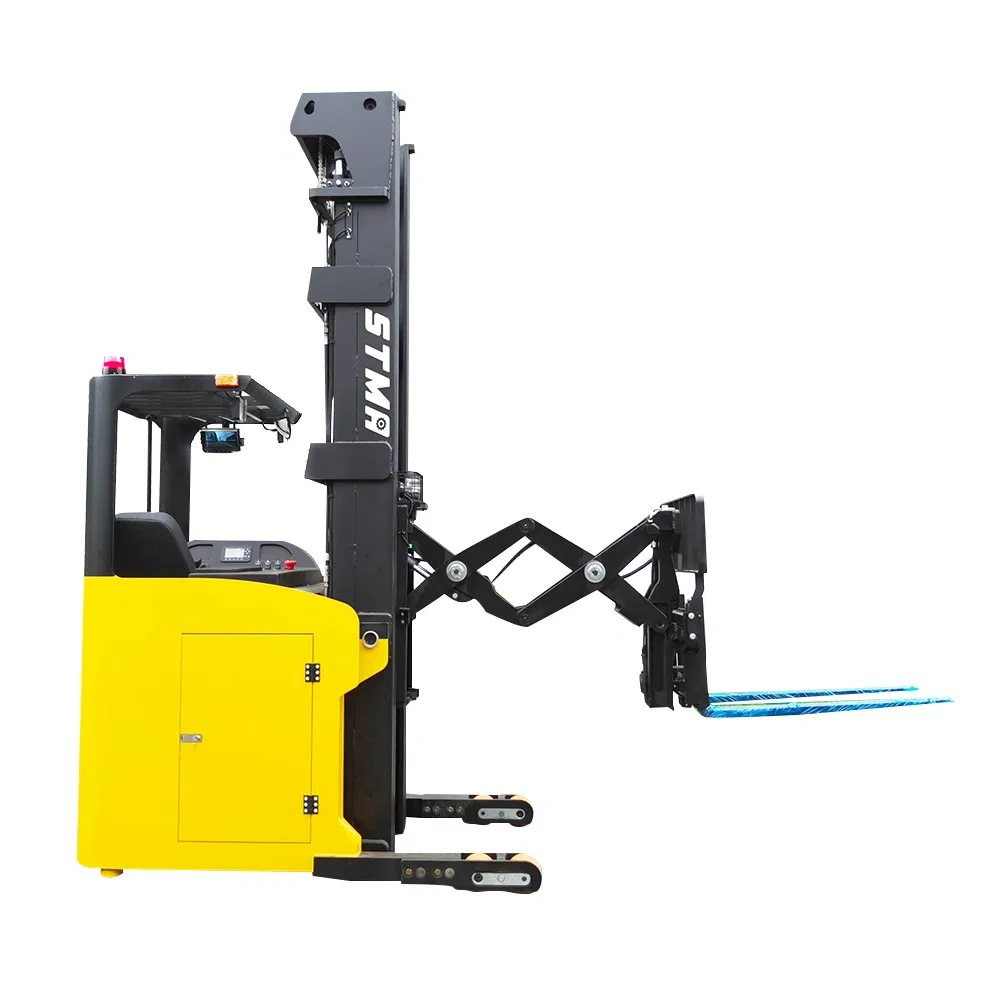

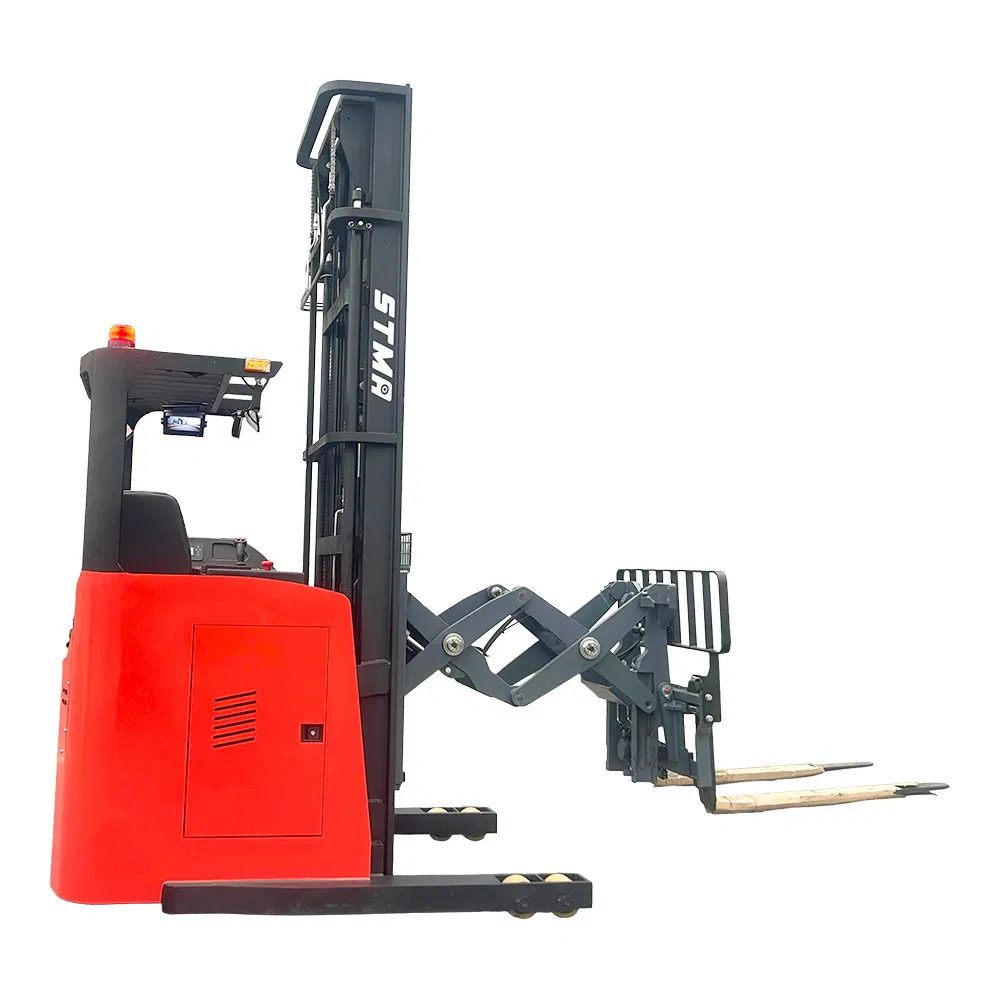

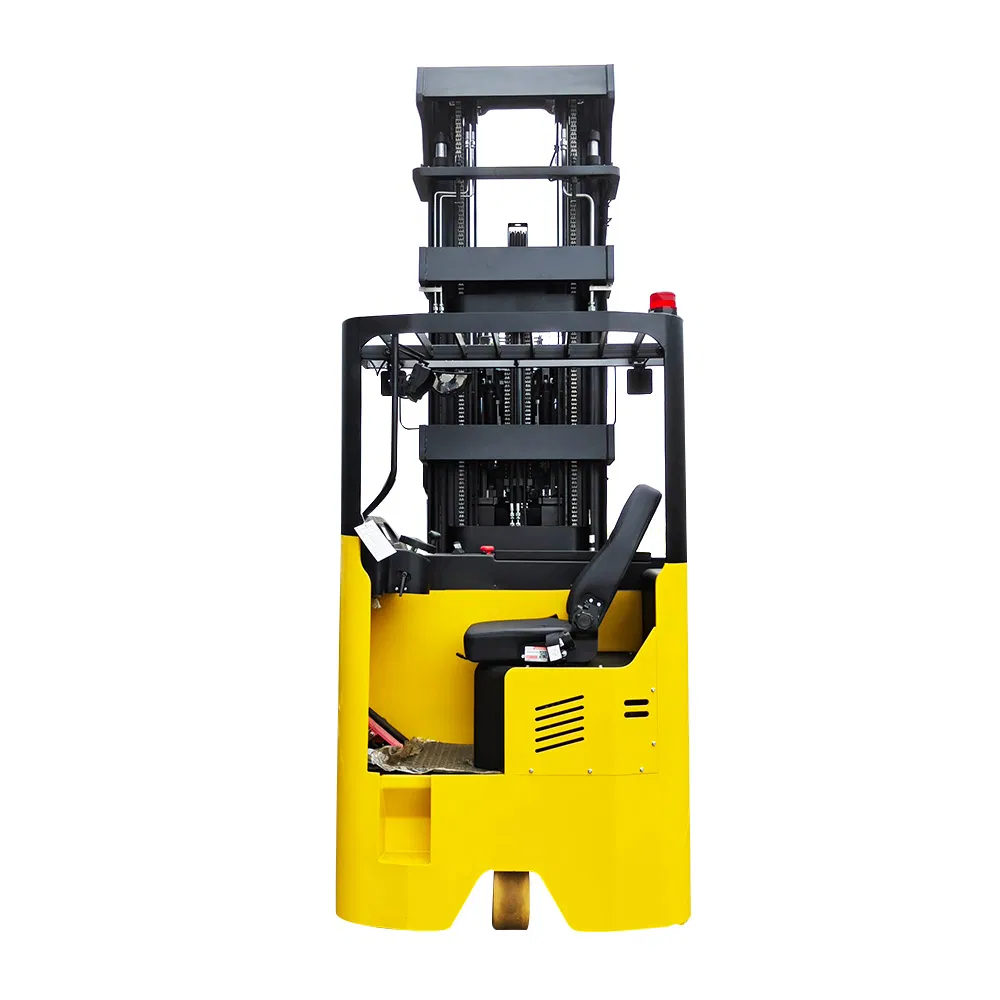

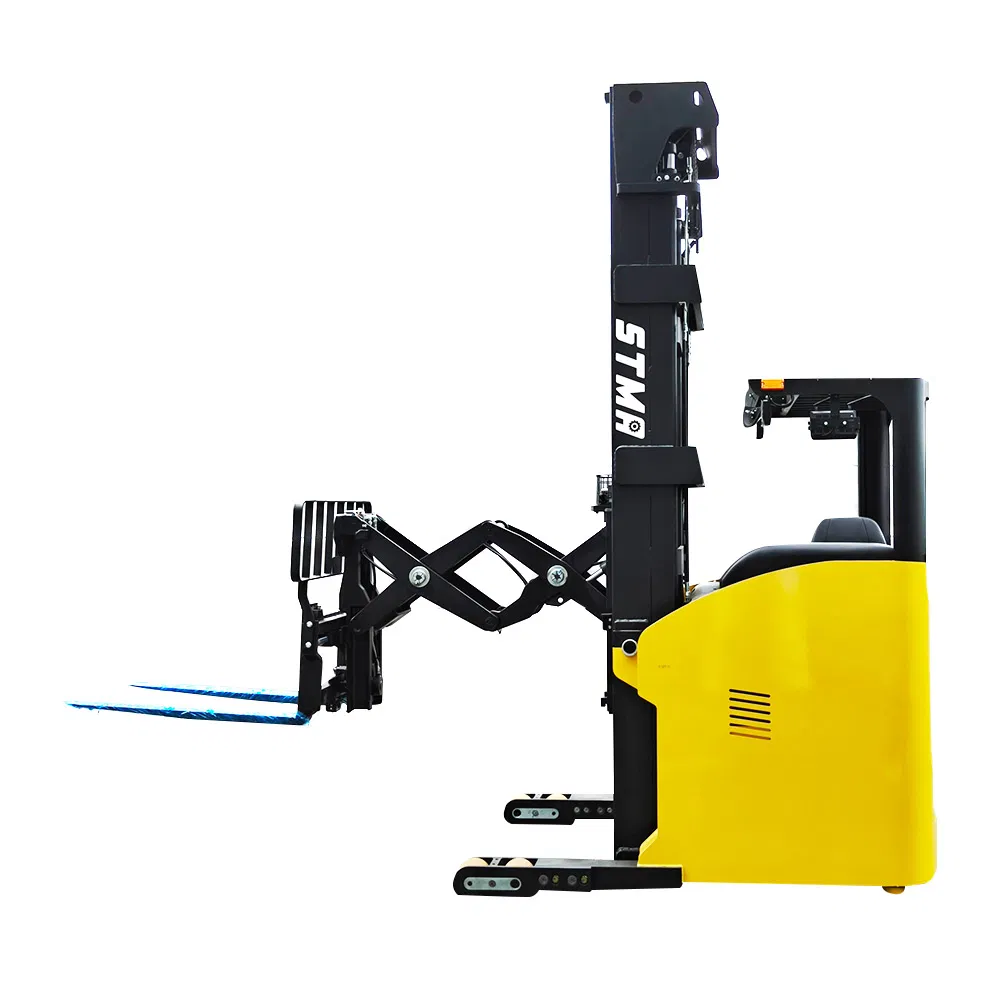

Double Deep Reach Truck Scissors Lift
Welcome to inquiry us to get more discounts and spare parts!
-
Feature
Rated capaity: 1600kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-12000mm
-
Feature
Controller：ERT15H
description
STMA brand Double Deep Reach Truck Scissors Lift with OEM service
Specifications:
| 1.1 | 型号 Model No. | ERT15H-45S | |
| 1.2 | 动力 Power type | 电动 Electric | |
| 1.3 | 操作方式 Operation type | 站驾式 Stand Type | |
| 1.4 | 额定载荷能力 Load capacity | Q(Kg) | 1500 |
| 1.5 | 最小承载距离 Min.bearing distance | X(mm) | 380 |
| 1.6 | 载荷中心距 Load center | C(mm) | 500 |
| 2.1 | 含蓄电池时自重Total weight with battery | kg | 3540 |
| 3.1 | 轮子种类 Wheel type | 聚氨酯 PU | |
| 3.2 | 驱动轮规格 Drive wheel | ∅×w(mm) | Ф382*142 |
| 3.3 | 前轮规格 Front wheel | ∅×w(mm) | Ф145*100 |
| 3.4 | 平衡轮规格 Balance wheel | ∅×w(mm) | Ф180*76 |
| 3.5 | 轮子数量（前轮/驱动轮X/平衡轮） Number of wheels (Front /Drive× / Balance wheel) | 4/1×/2 | |
| 3.6 | 轮距，前轮 Wheel tread,front wheel | b10(mm) | 1562 |
| 4.1 | 门架闭合高度 Mast lowered height | h1(mm) | 2854 |
| 4.2 | 作业时门架最大高度 Max.height when lifting | h4(mm) | 4970（5284总高Total height） |
| 4.3 | 护顶架高度 Height of overhead guards | h14(mm) | 2280 |
| 4.4 | 车体长度(含货叉/不含货叉)(货叉收回) Overall length(fork forward/back) | l2(mm) | 2410/1977 |
| 4.5 | 车体宽度 Overall width | b1(mm) | 1390 |
| 4.6 | 货叉尺寸 Fork size | s/e/l(mm) | 35*122*1070 |
| 4.7 | 货叉调节尺寸 Fork adjustment size | b5(mm) | 210-680 |
| 4.8 | 最小离地间隙（轴距中心）Min.ground clearance | m2(mm) | 72 |
| 4.9 | 堆垛通道宽度，托盘1000×1200（1200沿货叉放置) Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 2835 |
| 4.10 | 最小转弯半径 Min.turning radius | Wa(mm) | 1854 |
| 4.11 | 货叉伸缩行程 Telescopic stroke of fork | （mm） | 1200 |
| 5.1 | 最大行驶速度，空载/满载 Max.travel speed(unload/load) | km/h | 7/6.5 |
| 5.2 | 起升速度，空载/满载 Lifting speed(unload/load) | m/s | 0.330/0.245 |
| 5.3 | 下降速度，空载/满载 Lowering speed(unload/load) | m/s | 0.260/0.325 |
| 5.4 | 行车制动 rake type | 电磁 Electromagnetism | |
| 6.1 | 驱动电机功率 Driving motor | kw | 4.5 |
| 6.2 | 提升电机功率 Lifting motor | kw | 6.3 |
| 6.3 | 蓄电池类型 Battery type | 铅酸 Lead Acid | |
| 6.4 | 蓄电池电压/电容 Battery capacity | V/Ah | 48V/300 |
| 6.5 | 充电机 Charger | V/Ah | 48V/40A |
| 7.1 | 驱动控制方式 Drive controlling type | 霍尔加速器 Hall accelerator |
Mast specifications:
| Triplex full free mast | |||||||||||||||
| Lift height | h3(mm) | 5025 | 5330 | 5715 | 6095 | 6245 | 6320 | 6350 | 6400 | 6855 | 7010 | 7110 | 7315 | 7515 | |
| Mast extended height | h4(mm) | 6105 | 6410 | 6795 | 7175 | 7325 | 7400 | 7430 | 7480 | 7935 | 8090 | 8190 | 8395 | 8595 | |
| Mast retarcted height | h1(mm) | 2260 | 2415 | 2590 | 2720 | 2820 | 2845 | 2855 | 2870 | 3025 | 3125 | 3160 | 3225 | 3295 | |
| Free lift height | h2(mm) | 1180 | 1335 | 1510 | 1640 | 1740 | 1765 | 1775 | 1790 | 1945 | 2045 | 2080 | 2145 | 2215 | |
| Service weight(incl. battery) | 1FE14D | kg | 3840 | 3900 | 3980 | 4050 | 4080 | 4100 | 4105 | 4115 | 4205 | 4235 | 4255 | 4300 | 4340 |
| 1FE20B | 3740 | 3800 | 3880 | 3950 | 3980 | 4000 | 4005 | 4015 | 4105 | 4135 | 4155 | 4200 | 4240 | ||
| Triplex full free mast | |||||||||||||||
| Lift height | h3(mm) | 7620 | 8000 | 8150 | 8230 | 8380 | 8660 | 9295 | 9450 | 9550 | 9650 | 9750 | 10160 | ||
| Mast extended height | h4(mm) | 8700 | 9080 | 9230 | 9310 | 9460 | 9740 | 10375 | 10530 | 10630 | 10730 | 10830 | 11240 | ||
| Mast retarcted height | h1(mm) | 3330 | 3505 | 3560 | 3645 | 3695 | 3785 | 4060 | 4135 | 4165 | 4205 | 4245 | 4365 | ||
| Free lift height | h2(mm) | 2250 | 2425 | 2480 | 2565 | 2615 | 2705 | 2980 | 3055 | 3085 | 3125 | 3165 | 3285 | ||
| Service weight(incl. battery) | 1FE14D | kg | 4360 | 4435 | 4465 | 4480 | 4500 | 4565 | 4690 | 4725 | 4745 | 4765 | 4785 | 4870 | |
| 1FE20B | 4260 | 4335 | 4365 | 4380 | 4400 | 4465 | 4590 | 4625 | 4645 | 4665 | 4685 | 4770 | |||
