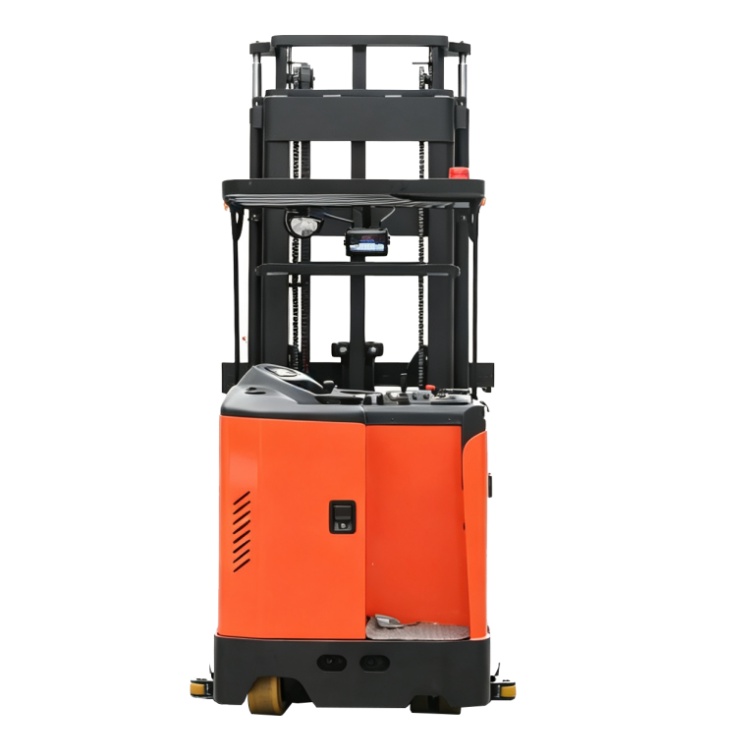

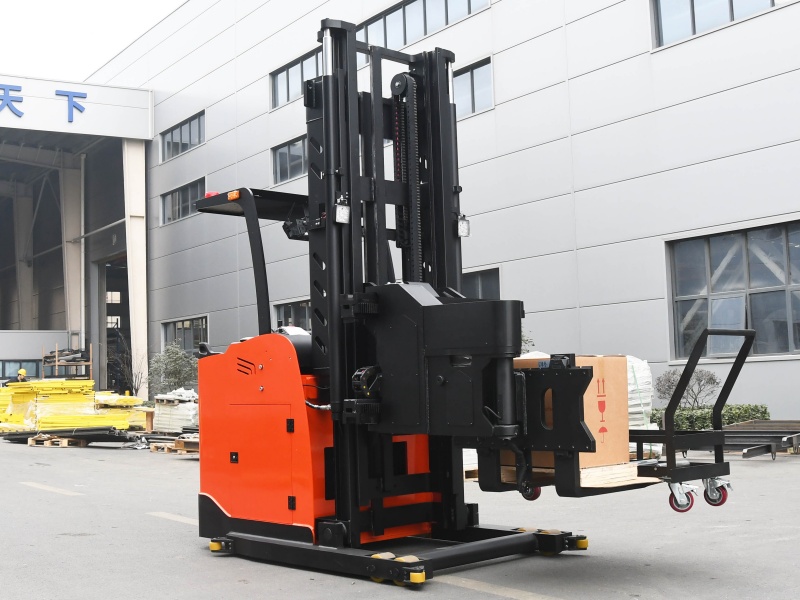

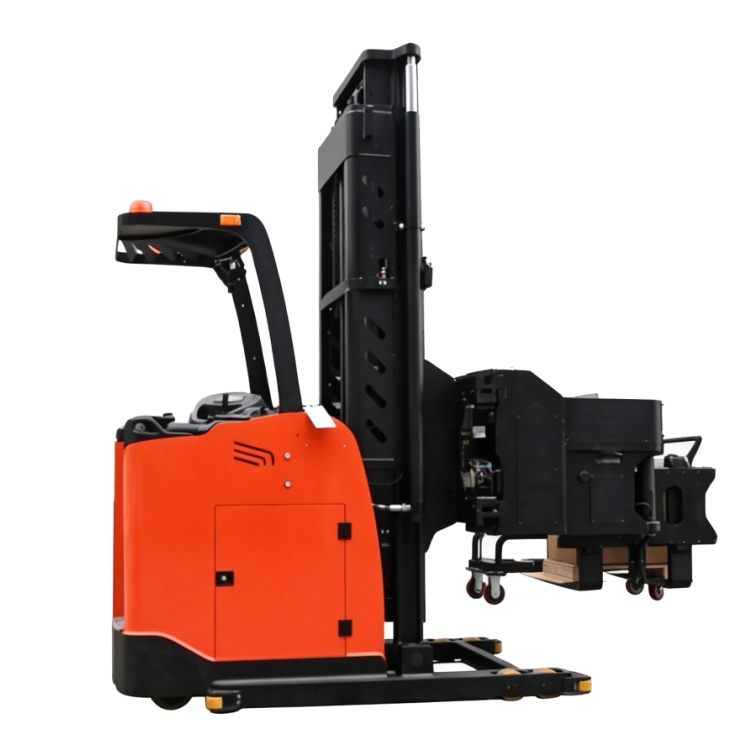

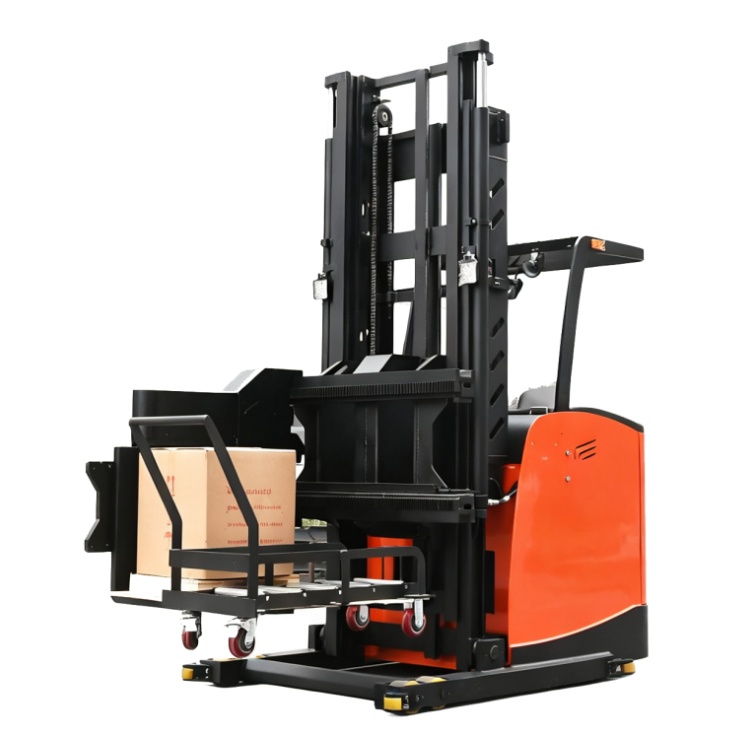

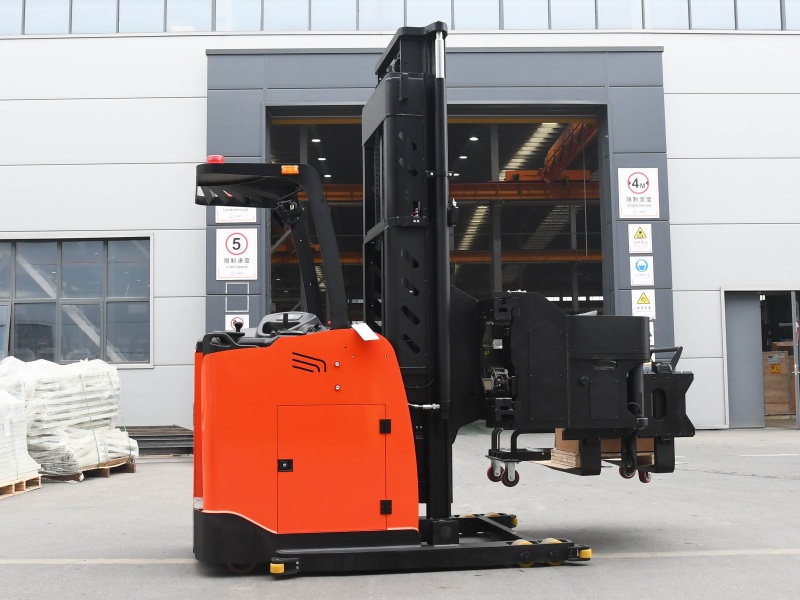

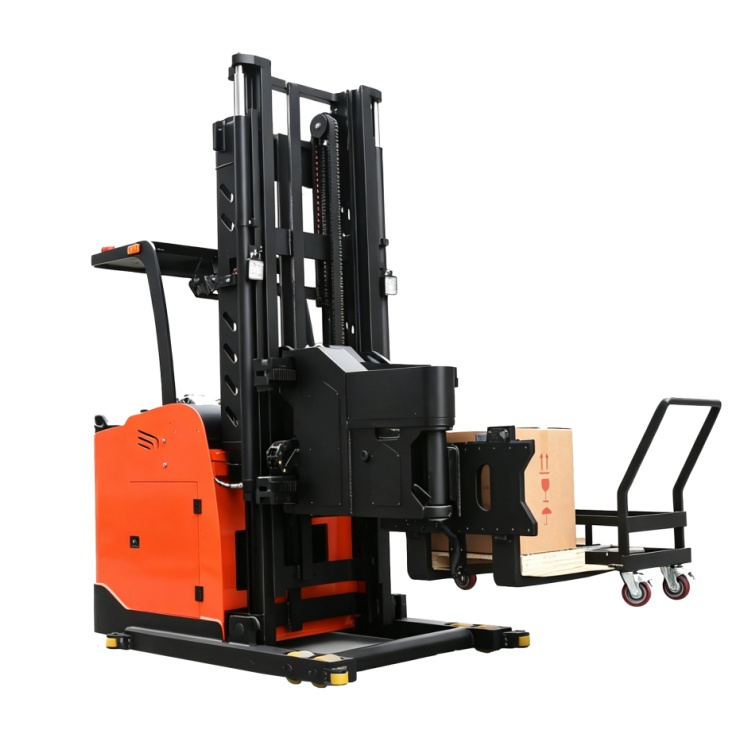

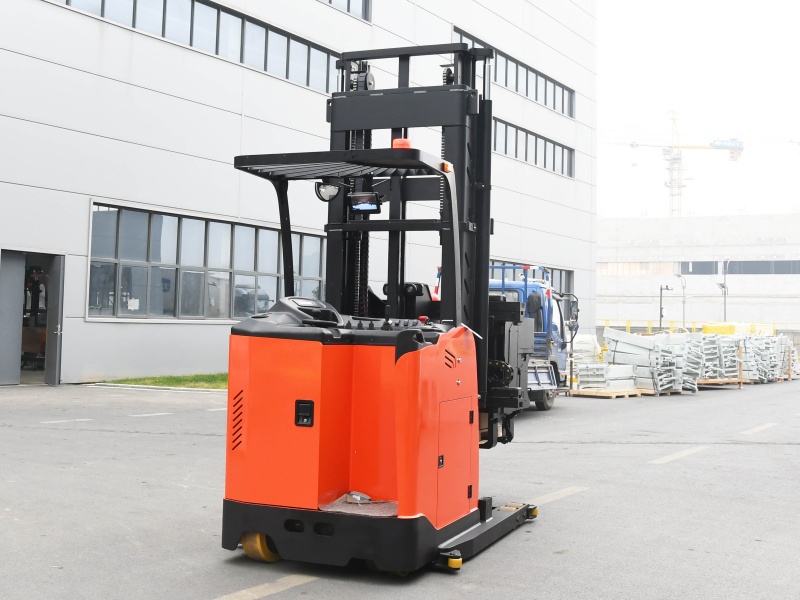

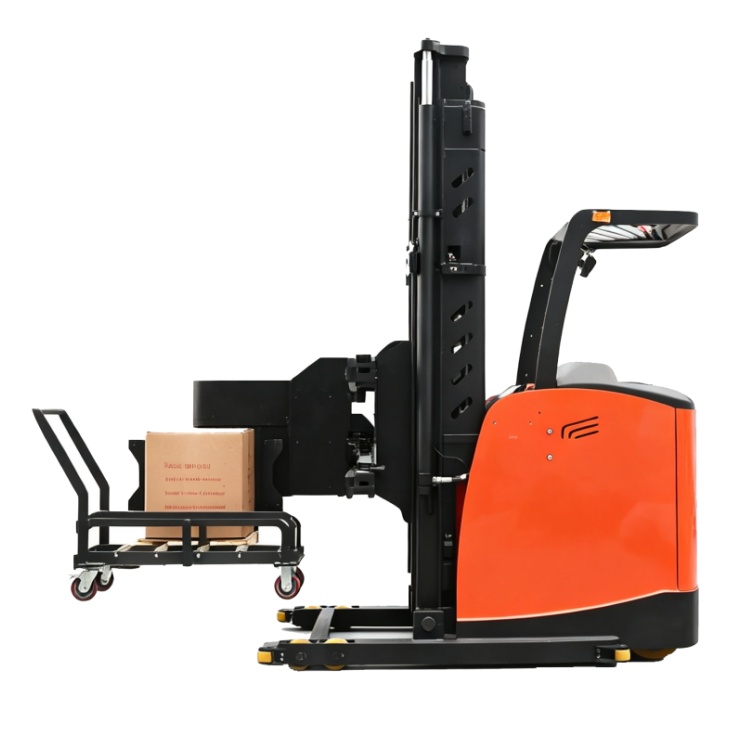

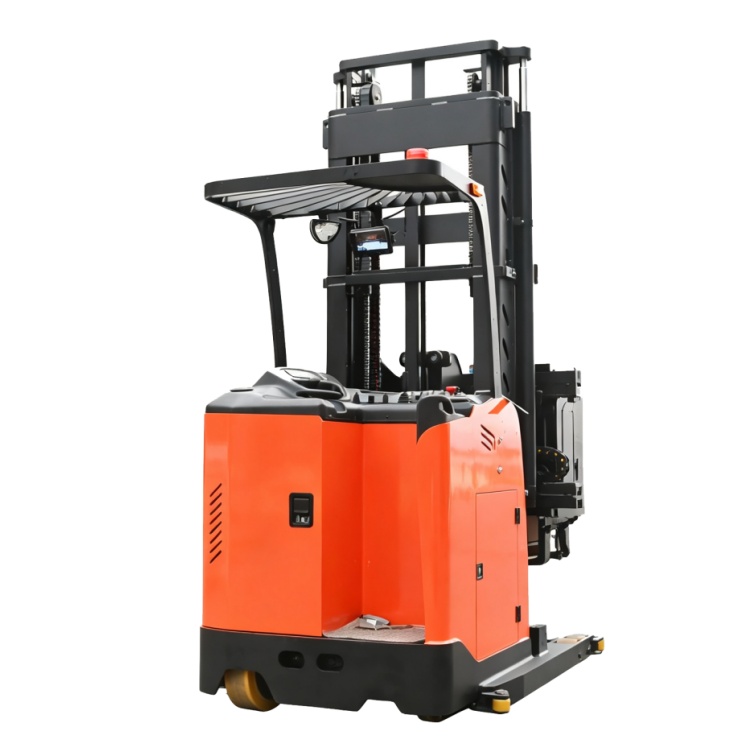

Three-Way Pallet Stacker With Stand Type
1. Imported high-end controller (Curtis, ZAPI, Inmotin): High control precision, smooth operation, integrated speed and fault diagnosis functions. 2. High-efficiency hydraulic system: Smooth lifting/lowering/lateral movement, optional main and auxiliary mast synchronization, high-speed hydraulics, further improving efficiency.
-
Feature
Rated capaity: 1000-1500kg
-
Feature
Load centre: 500mm
-
Feature
Lifting Height: 3000-10500mm
-
Feature
Controller：Domestic Controller/Curtis controller
description
STMA Three-Way Pallet Stacker With Standing Type
Specifications:
| Model | CDDM10-60S | CDDM12-60S | CDDM15-60S | CDDM16-60S | |
| Power Type | 电动 | 电动 | 电动 | 电动 | |
| Operation Type | 站驾式 | 站驾式 | 站驾式 | 站驾式 | |
| Load Capacity | Q(kg) | 1000 | 1200 | 1500 | 1600 |
| Load Center | C(mm) | 500 | 550 | 600 | 600 |
| Service Weight (With Battery) | kg | 5100 | 5200 | 6300 | 6500 |
| Wheel Type | 聚氨酯 | 聚氨酯 | 聚氨酯 | 聚氨酯 | |
| Driving Wheel | ∅×w(mm) | Ф382*142 | Ф382*142 | Ф382*142 | Ф382*142 |
| Front Wheel | ∅×w(mm) | Ф145*100 | Ф145*100 | Ф145*100 | Ф145*100 |
| Balance Wheel | ∅×w(mm) | Ф180*76 | Ф180*76 | Ф180*76 | Ф180*76 |
| Wheel Tread (Front) | b10(mm) | 1210 | 1210 | 1305 | 1305 |
| Wheelbase Distance | y(mm) | 1700 | 1700 | 1700 | 1700 |
| Mast Lowered Height | h1(mm) | 3400 | 3400 | 3400 | 3400 |
| FreeLift | h2(mm) | 2235 | 2235 | 2235 | 2235 |
| Lift Height | h3(mm) | 6000 | 6000 | 6000 | 6000 |
| Height,mast entended | h4(mm) | 7125 | 7125 | 7125 | 7125 |
| Height of overhead Guards | h14(mm) | 2260/2300 | 2260/2300 | 2260/2300 | 2260/2300 |
| Overall Length (Body/Overall) | l2(mm) | 3045 | 3045 | 3065 | 3065 |
| Overall Width | b1(mm) | 1455 | 1455 | 1550 | 1550 |
| Anti-collision guardrails width | (mm) | 1500 | 1500 | 1600 | 1600 |
| Fork Size | s/e/l(mm) | 40/122/1070 | 40/122/1070 | 45/125/1200 | 45/125/1200 |
| Fork Spread (Customizable) | b5(mm) | 260-650（可定制） | 260-650（可定制） | 260-650（可定制） | 260-650（可定制） |
| Min.Ground Clearance | m2(mm) | 32 | 32 | 32 | 32 |
| Aisle Width | Ast(mm) | 1500（1000*1000托盘） | 1500（1000*1000托盘） | 1600（1200*1200托盘） | 1600（1200*1200托盘） |
| Channel Guide Rail Height | （mm） | 120 | 120 | 120 | 120 |
| Min. Turning Radius | Wa(mm) | 1985 | 1985 | 1985 | 1985 |
| Main AisleWidth | mm | 3270+400 | 3270+400 | 3470+400 | 3470+400 |
| Max. Travel Speed (Unladen/Laden) | km/h | 8/7 | 8/7 | 8/7 | 8/7 |
| Lifting Speed (Unladen/Laden) | m/s | 0.30/0.26 | 0.30/0.26 | 0.30/0.26 | 0.30/0.26 |
| Lowering Speed (Unladen/Laden) | m/s | 0.30/0.32 | 0.30/0.32 | 0.36/0.39 | 0.36/0.39 |
| Driving Brake | 电磁制动 | 电磁制动 | 电磁制动 | 电磁制动 | |
| Drive Motor | kw | 6.5 AC | 6.5 AC | 6.5 AC | 6.5 AC |
| Lift Motor | kw | 15AC | 15AC | 15AC | 15AC |
| Battery Type | 铅酸电池 | 铅酸电池 | 铅酸电池 | 铅酸电池 | |
| Battery voltage/nominal capacity | V/Ah | 48V/400Ah | 48V/400Ah | 48V/400Ah | 48V/400Ah |
| Charger | V/Ah | 48V/50A | 48V/50A | 48V/50A | 48V/50A |
| Type of Drive Control | 交流 | 交流 | 交流 | 交流 |
