Four directional Reach Trucks
1、Independent steering wheels (multi-wheel coordination): Each drive wheel can turn and drive 360°, offering high control precision and stability. 2、All-wheel drive/steering: Independent control of four wheels provides enhanced grip and maneuverability, adapting to uneven terrain.
-
Feature
Rated capaity: 1500-2500kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-7000mm
-
Feature
Controller：Domestic Controller/Curtis controller
description

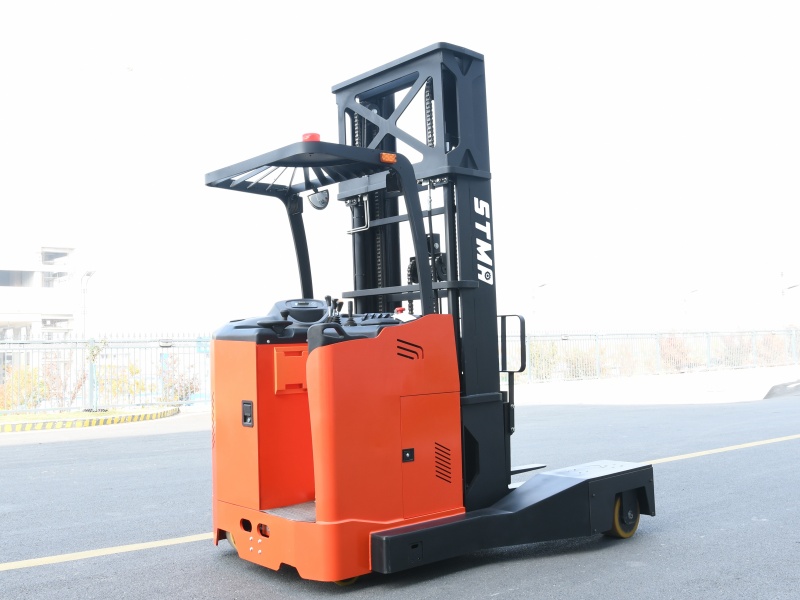

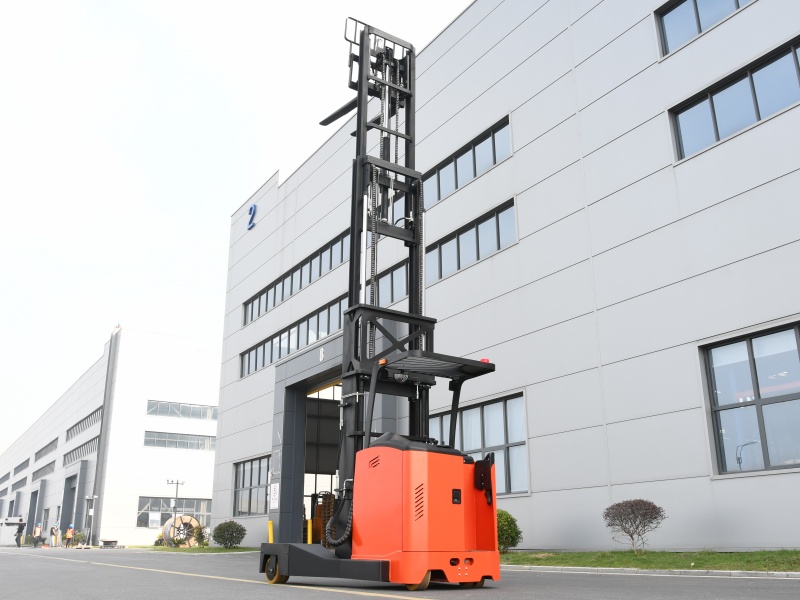

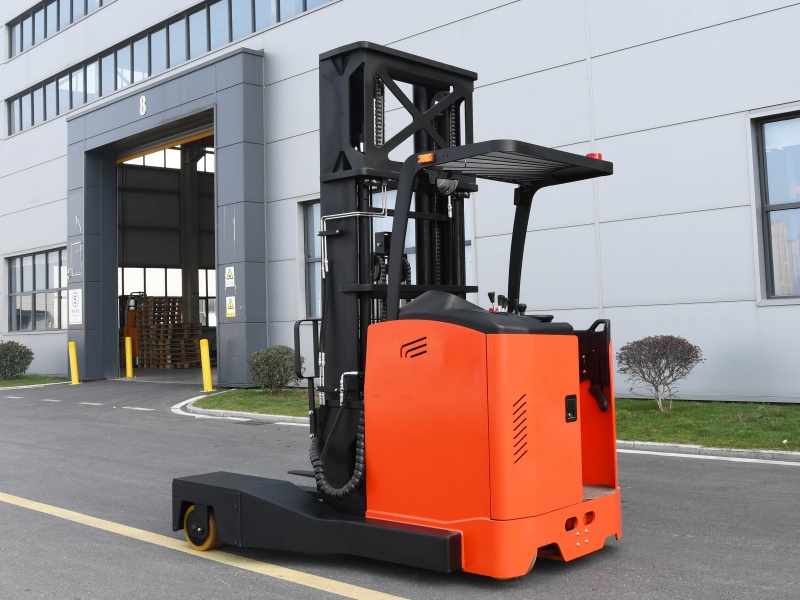

STMA Four directional Reach Trucks
Specifications:
| Model | CQDS15-45S | CQDS20-45S | CQDS25-45S | CQDS30-60S | |
| Load Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 |
| load Center | C(mm) | 500 | 500 | 500 | 500 |
| Front Overhang | X(mm) | 200 | 200 | 200 | 250 |
| Wheelbase Distance | Y(mm) | 1622 | 1722 | 1822 | 1824 |
| Service Weight (With Battery) | kg | 3400 | 3500 | 3800 | 5100 |
| Wheel Type | 聚氨酯 | 聚氨酯 | 聚氨酯 | 聚氨酯 | |
| Front Wheel | ∅×w(mm) | φ267*114 | φ267*114 | φ267*114 | φ285*78（4个） |
| Driving Wheel | ∅×w(mm) | φ382*142 | φ382*142 | φ382*142 | φ382*142 |
| Balance Wheel | ∅×w(mm) | φ180*76 | φ180*76 | φ180*76 | φ180*76（2个） |
| Wheel Tread (Front Wheel) | b10(mm) | 1430 | 1430 | 1430 | 1583 |
| Wheel Tread (Rear Wheel) | b11(mm) | 703 | 703 | 703 | 703 |
| Mast Height Lowered | h1(mm) | 2110 | 2110 | 2360 | 2996 |
| Free Lift | h2(mm) | 1500 | 1500 | 1500 | 1980 |
| Lift Height | h3(mm) | 4500 | 4500 | 4500 | 6000 |
| Height,mast entended | h4(mm) | 5480 | 5480 | 5480 | 6965 |
| Height of overhead Guards | h14(mm) | 2280 | 2280 | 2280 | 2280 |
| Fork Height When Mast Lowdered | h13(mm) | 35 | 40 | 45 | 45 |
| Mast Tilt Angle Forward/Backward | α/β（°） | 3/5 | 3/5 | 3/5 | 3/5 |
| Overall length with fork retracted | l1(mm) | 2505 | 2585 | 2700 | 2650 |
| Overall Length (Without Fork) | l2(mm) | 2046 | 2146 | 2246 | 2295 |
| Overall Width | b1(mm) | 1680 | 1680 | 1680 | 1900 |
| Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | 45/125/1070 |
| Fork Spread (Customizable) | b5(mm) | 210-705 | 260-705 | 270-840 | 270-840 |
| Reach Distance | L(mm) | 655 | 700 | 640 | 720 |
| Min. Ground Clearance | m2(mm) | 80 | 80 | 80 | 80 |
| Aisle Widthfor Pallet 1000*1200 Crossways | Ast(mm) | 2705 | 2785 | 2900 | 3050 |
| Min. Turning Radius | Wa(mm) | 1905 | 2000 | 2105 | 2055 |
| Max. Travel Speed (Unladen/Laden) | km/h | 8/7 | 8/7 | 8/7 | 8/7 |
| Lifting Speed (Unladen/Laden) | m/s | 0.320/0.260 | 0.350/0.240 | 0.330/0.240 | 0.300/0.200 |
| Lowering Ing Speed (Unladen/Laden) | m/s | 0.350/0.380 | 0.320/0.400 | 0.320/0.400 | 0.240/0.300 |
| Max.gradeability (Unladen/Laden) | ％ | ≤10 | ≤10 | ≤10 | ≤10 |
| Service Brake | 电磁 | 电磁 | 电磁 | 电磁 | |
| Drive Motor | kw | 6.5AC | 6.5AC | 6.5AC | 8AC |
| Lift Motor | kw | 8.6AC | 8.6AC | 8.6AC | 12AC |
| Battery Type | 铅酸 | 铅酸 | 铅酸 | 铅酸 | |
| Battery voltage/nominal capacity | V/Ah | 48V300Ah | 48V400Ah | 48V400Ah | 48V400Ah |
| Charger | V/Ah | 48V/40A | 48V/50A | 48V/50A | 48V/50A |
| Type of Drive Control | 交流 | 交流 | 交流 | 交流 | |
| Sound level at the driver's ear acc.to EN12053 | dB(A) | 75 | 75 | 75 | 75 |
