Four directional Reach Trucks
1、King of narrow aisles: Aisle width can be reduced to 1.65–1.8 meters, saving over 30% of aisle space compared to traditional reach trucks. 2、High efficiency and precision: Shorter paths, no reversing required, improving operational efficiency; with servo control, positioning reaches millimeter-level accuracy.
-
Feature
Rated capaity: 1500-2500kg
-
Feature
Load center: 500mm
-
Feature
Lifting Height: 3000-7000mm
-
Feature
Controller：Domestic Controller/Curtis controller
description

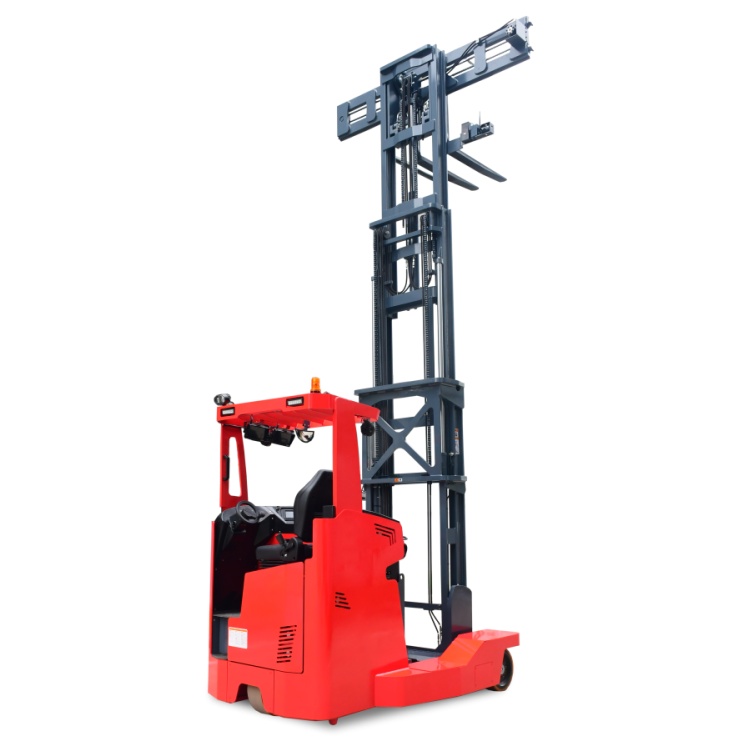

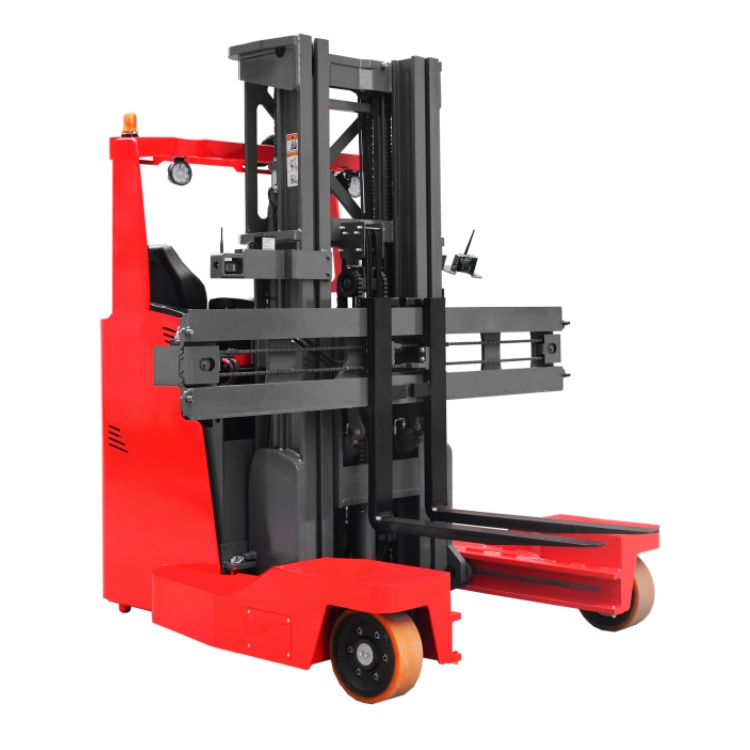

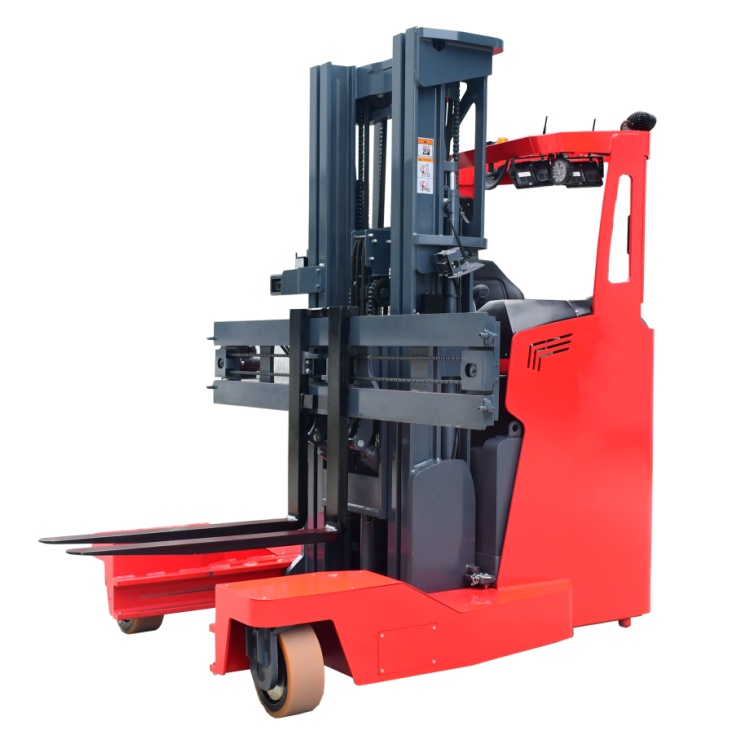

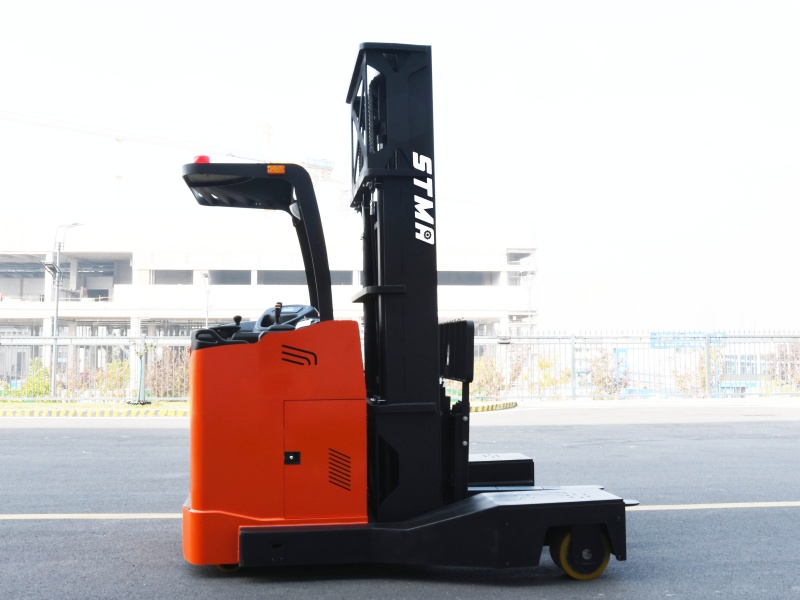

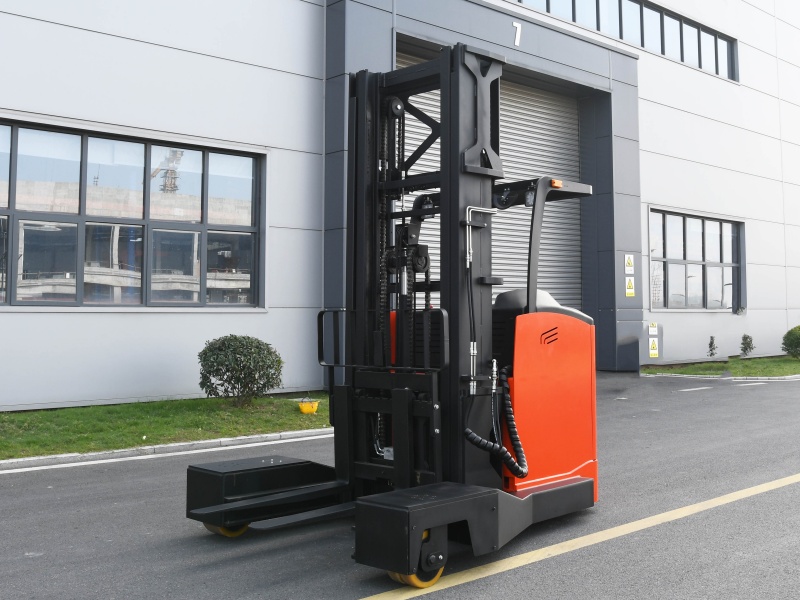

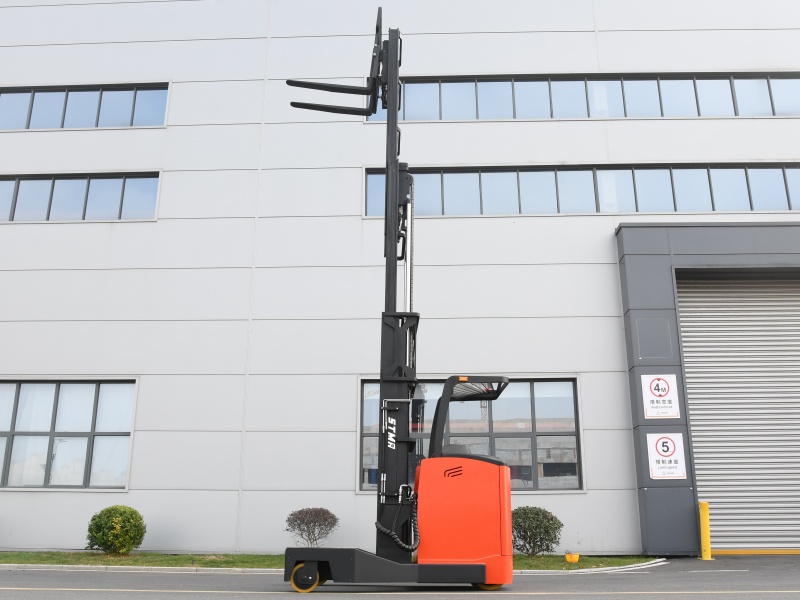

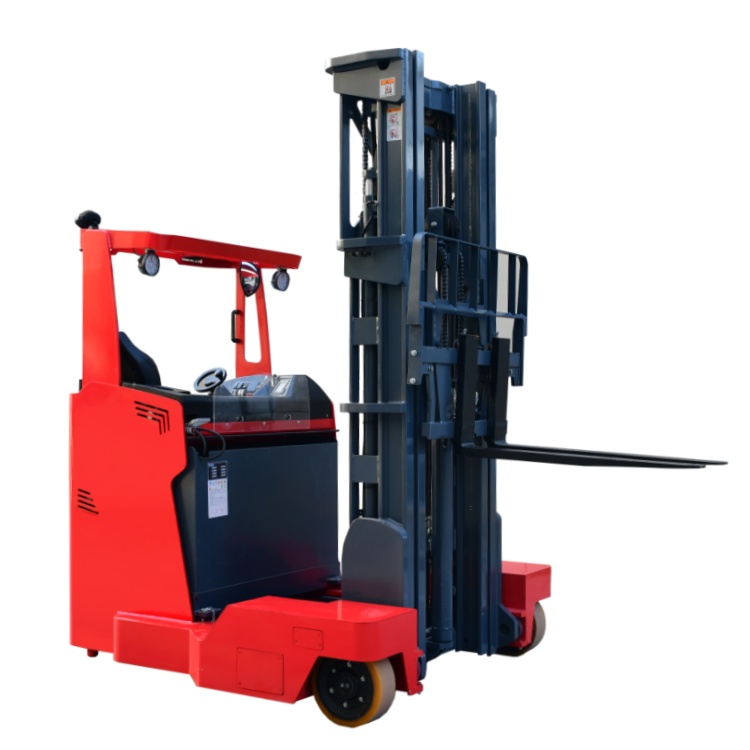

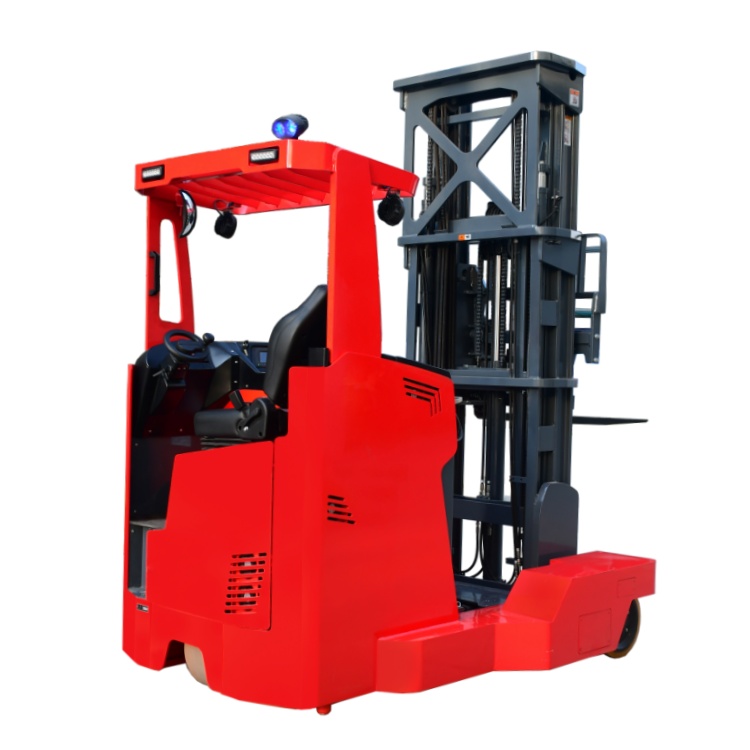

STMA Four directional Reach Trucks
Specifications:
| 1.1 | 型号 Model No. | CQD15S | CQD20S | CQD25S | |
| 1.2 | 操作方式 Operation Type | 侧站式 Stand Type | 侧站式 Stand Type | 侧站式 Stand Type | |
| 1.3 | 额定载荷能力 Capacity | Q(kg) | 1500 | 2000 | 2500 |
| 1.4 | 载荷中心距 Load Center | C(mm) | 500 | 500 | 500 |
| 1.5 | 前悬距离 Front Overhang | X(mm) | 238 | ||
| 1.6 | 轴距 Wheelbase | Y(mm) | 1622 | 1722 | 1822 |
| 2.1 | 含蓄电池时自重 Total Weight(with Battery) | kg | 3400 | 3500 | 3800 |
| 3.1 | 轮子种类 Wheel Type | 聚氨酯 PU | 聚氨酯 PU | 聚氨酯 PU | |
| 3.2 | 前轮规格 Front Wheel | ∅×w(mm) | φ267*114 | φ267*114 | φ267*114 |
| 3.3 | 驱动轮规格 Driving Wheel | ∅×w(mm) | φ382*142 | φ382*142 | φ382*142 |
| 3.4 | 平衡轮规格 Balance Wheel | ∅×w(mm) | φ180*76 | φ180*76 | φ180*76 |
| 3.5 | 轮距（前轮）Wheelbase（Front Wheel） | b10(mm) | 1430 | 1430 | 1430 |
| 3.6 | 轮距(后轮) Wheelbase（Rear Wheel） | b11(mm) | 703 | 703 | 703 |
| 4.1 | 门架闭合高度 Mast Lowered Height | h1(mm) | 2110 | 2110 | 2110 |
| 4.2 | 自由提升高度 Freel Lift Height | h2(mm) | 1500 | 1500 | 1500 |
| 4.3 | 提升高度 Lift Height | h3(mm) | 4500 | 4500 | 4500 |
| 4.4 | 作业时门架最大高度 Max. Height when Ligting | h4(mm) | 5416 | 5416 | 5416 |
| 4.5 | 护顶架高度 Height of overhead Guards | h14(mm) | 2280 | 2280 | 2280 |
| 4.6 | 门架缩回时货叉高度 Fork Height When Mast Closed | h13(mm) | 35 | 40 | 45 |
| 4.7 | 门架倾角 前/后 Mast Tilt Angle Forward/Backward | ° | 3/5 | 3/5 | 3/5 |
| 4.8 | 整车长度(含货叉) Overall Length(When Fork Back) | l1(mm) | 2505 | 2585 | 2615 |
| 4.9 | 车体长度(不含货叉) Vehicle Body Overall Length(Without Fork) | l2(mm) | 2046 | 2146 | 2246 |
| 4.10 | 车体宽度 Overall Width | b1(mm) | 1680 | 1680 | 1680 |
| 4.11 | 货叉尺寸 Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 |
| 4.12 | 货叉调节尺寸 Fork Spread（Customizable） | b5(mm) | 210-700 | 260-700 | 260-700 |
| 4.13 | 前移距离 Reach Stroke | l4(mm) | 655 | 700 | 780 |
| 4.14 | 最小离地间隙（轴距中心）Min. Groud Clearence | m2(mm) | 80 | 80 | 80 |
| 4.15 | 堆垛通道宽度，托盘1000×1200（1200沿货叉放置) Aisle Width for Pallet 1000*1200 Crossaway | Ast(mm) | 2700 | 2750 | 2855 |
| 4.16 | 最小转弯半径 Min. Truning Radius | Wa(mm) | 1905 | 2000 | 2105 |
| 5.1 | 最大行驶速度，空载/满载 Max. Travel Speed(Unload/Load) | km/h | 8/7 | 8/7 | 8/7 |
| 5.2 | 上升速度，空载/满载 Lifting Speed(Unload/Load) | m/s | 0.250/0.240 | 0.240/0.220 | 0.240/0.220 |
| 5.3 | 下降速度，空载/满载 Decnet Speed(Unload/Load) | m/s | 0.240/0.260 | 0.240/0.260 | 0.240/0.260 |
| 5.8 | 最大爬坡能力，空/满载 Max. Climbing Ability (Unload/Load) | ％ | ≤10 | ≤10 | ≤10 |
| 5.1 | 行车制动 Driving Brake | 电磁制动 Electromagnetic | 电磁制动 Electromagnetic | 电磁制动 Electromagnetic | |
| 6.1 | 驱动电机功率 Driving Motor | kw | 6.5 | 6.5 | 6.5 |
| 6.2 | 提升电机功率 Lifting Motor | kw | 8.6 | 8.6 | 8.6 |
| 6.3 | 蓄电池类型 Battery Type | 铅酸电池 Lead Acid | 铅酸电池 Lead Acid | 铅酸电池 Lead Acid | |
| 6.4 | 蓄电池电压/电容 Battery Capacity | V/Ah | 48V300Ah | 48V400Ah | 48V400Ah |
| 6.5 | 充电机 Charger | V/Ah | 48V/40A | 48V/50A | 48V/50A |
| 7.1 | 驱动控制方式 Control Model | 交流 AC | 交流 AC | 交流 AC |
