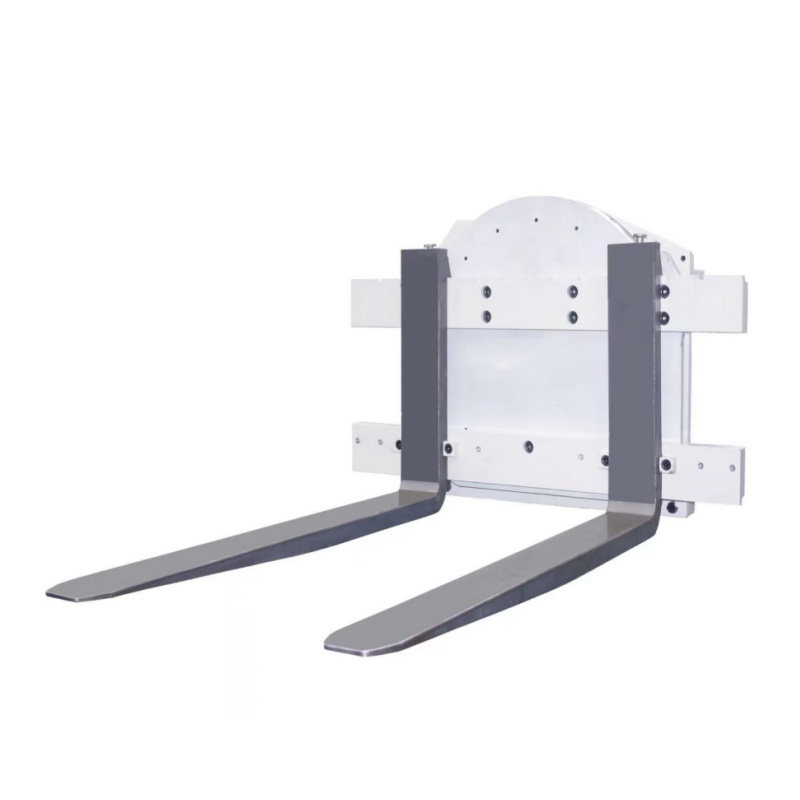

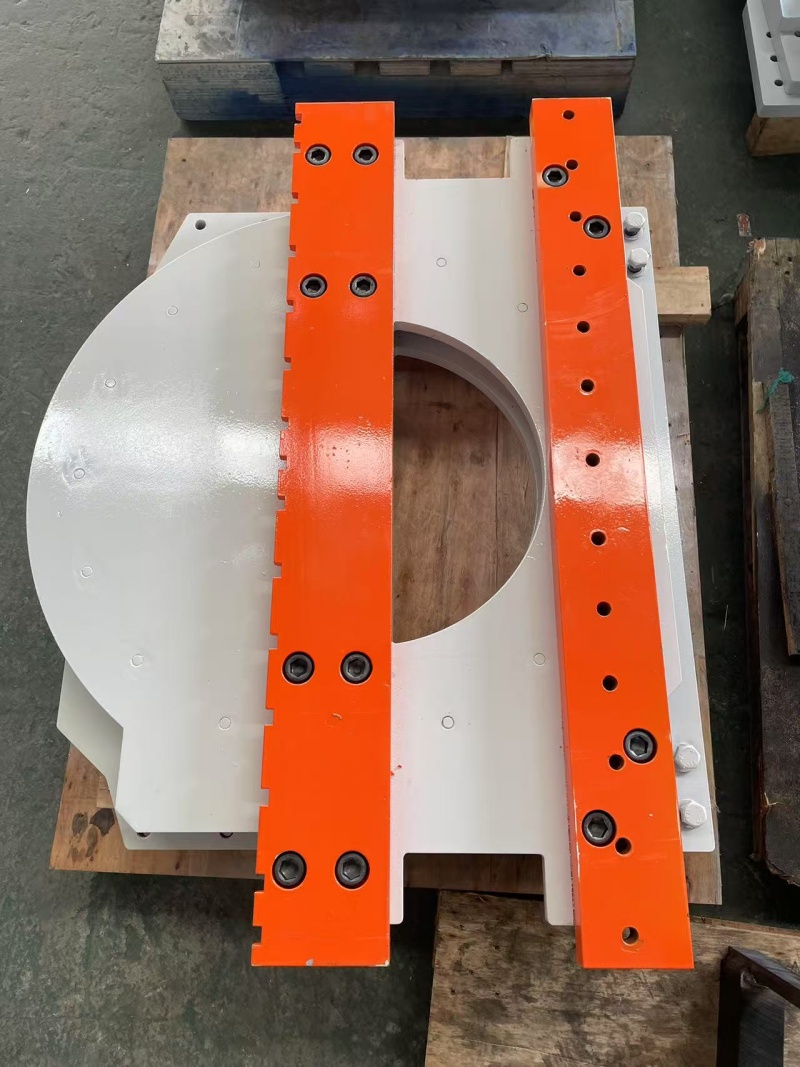

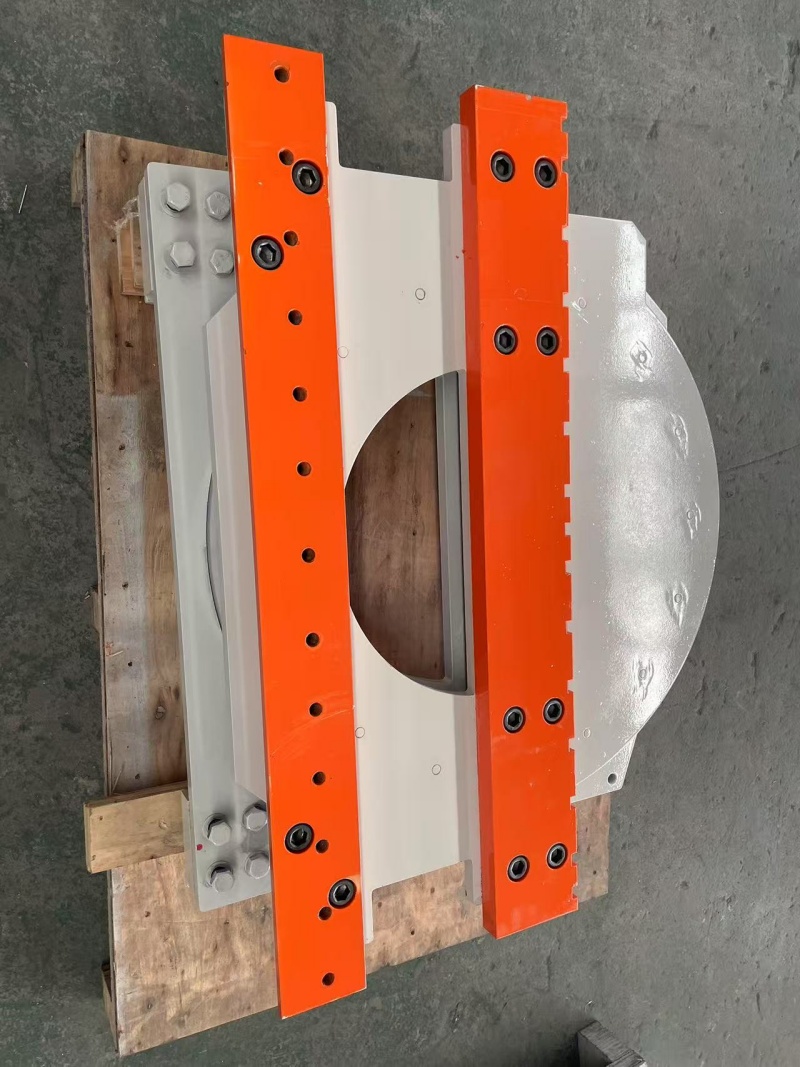

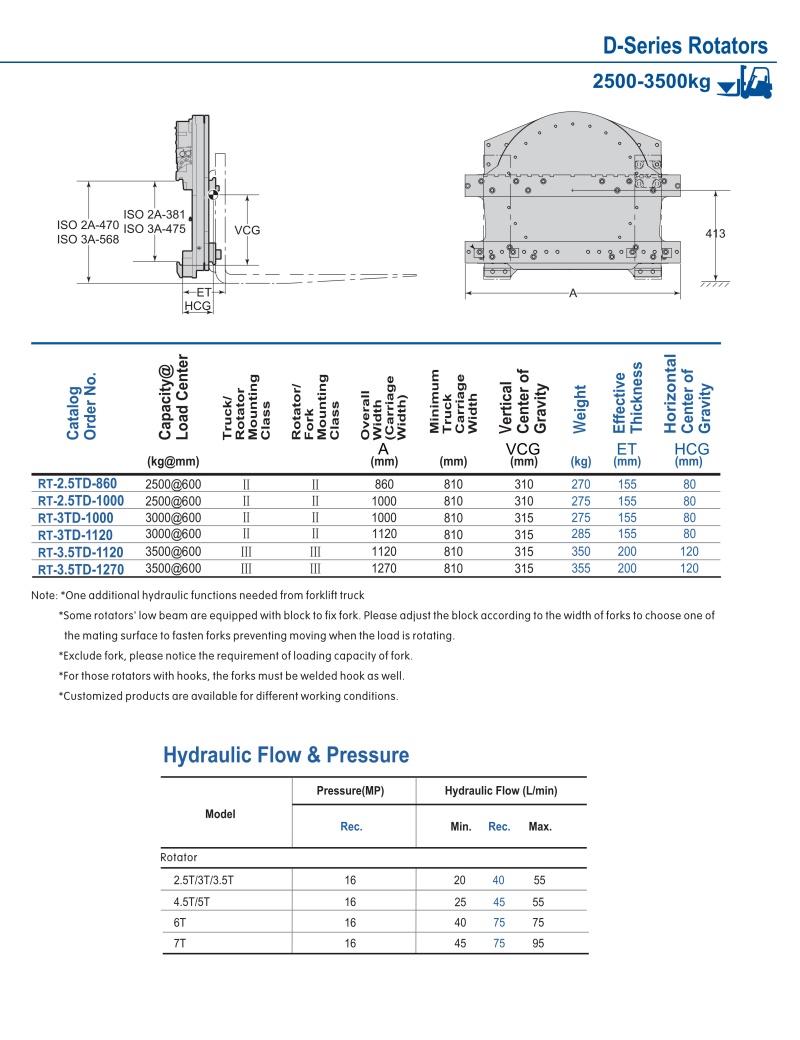

D Series Rotators Clamp

Note: 1、One additional hydraulic functions needed from forklift truck. 2、Some rotators' low beam are equipped with block to fix fork. Please adjust the block according to the width of forks to choose one of the mating surface to fasten forks preventing moving when the load is rotating. 3、Exclude fork, please notice the requirement of loading capacity of fork. 4、For those rotators with hooks, the forks must be welded hook as well. 5、Customized products are available for different working conditions.

•

  Rated capaity: 2500-3500kg

•

  Mouting class：Ⅱ/Ⅲ/Ⅳ

•

  Size：Customer customization

•

  Type：Hydraulic
